Excellent for applications exposed to low
temperatures
>>
Applications
• Shop Air Lines
• Light Vacuum
Service
• Water
Part No.
ID
(in.)
ID
(mm)
Reinf.
Braids
OD
(in.)
OD
(mm)
Approx.
Wt. per
100 Ft.
Min.
Bend
Radius
Max.
Rec.
WP
7534-250 ¼ 6.4 1 0.495 12.6 4.0 1.8 250
7534-381 ³/8 9.5 1 0.657 16.7 6.2 2.3 250
7534-500 ½ 12.7 1 0.760 19.3 7.0 3.3 250

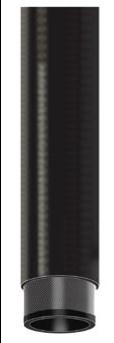

THORO-BRAID®
Low Temp Thermoplastic
ORS Push-On Hose
Series 7534
Excellent for shop air lines, water transfer, light chemical, light vacuum and general
industrial applications. Non-conductive. Excellent low temperature flexibility. Available
in special lengths, packaging and colors.
4:1 Design factor
Tube Black ORS Thermoplastic Rubber
Cover Black ORS Thermoplastic Rubber
Reinforcement Polyester Yarn
Temperature Range -45°F to +180°F (-43°C to +82°C)
Branding PARKER 7534
LOW TEMP THERMOPLASTIC ORS PUSH-ON -
(SIZE)" – (SIZE) MM – 250 PSI WP -
MADE IN USA -
Brand Description None
Compare to Goodyear Insta-Grip 250
LENGTHS: 500 ft. reels. Reels are 90% one continuous length. If two pieces, lengths
will be in multiples of 50 feet.
COUPLINGS: For permanent crimp specifications, refer to CrimpSource. For
assembly guidelines and additional coupling options, refer to NAHAD Industrial Hose
Assembly Guidelines.
7534
43
HOSE
Air & Multi-Purpose
