Rugged construction for harsh environments
>>
Applications
• Mining
• High Pressure
Air Tools
• Water
Washdown
Part No.
ID
(in.)
ID
(mm) Reinf.
OD
(in.)
OD
(mm)
Approx.
Wt. per
100 Ft.
Min.
Bend
Radius
Max.
Rec.
WP
7527-500
½ 12.7
2 0.940
23.9
30
3.0
400
7527-750
¾ 19.1
2 1.190
30.2
40
4.8
400
7527-1000
1
25.4
2 1.470
37.3
55
6.5
400

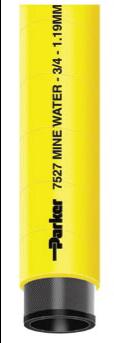

THORO-BRAID
®
400 PSI Mine Water Hose
Series 7527
This highly flexible, lightweight, non-marking hose is designed for use in mine air,
water transfer and light chemical transfer. It has a wrapped, sure grip cover for
enhanced ease of coiling and abrasion resistance. Good resistance to oil, ozone and
ultraviolet (UV) rays. Available in special lengths, packaging and colors.
4:1 Design factor
Tube
Black PVC Blend
Cover
Yellow Thermoplastic Rubber
Reinforcement
Polyester Yarn
Temperature Range
-28°F to +150°F (-33°C to +66°C)
Branding
PARKER 7527 MINE WATER -
(SIZE)" – (SIZE) MM -
400 PSI WP -
MADE IN USA -
Brand Description
Ink Brand - Black letter color
Compare to
Boston H1571
LENGTHS:
100 ft. coils
COUPLINGS:
For assembly guidelines and coupling options, refer to NAHAD
Industrial Hose Assembly Guidelines.
7527
42
HOSE
Air & Multi-Purpose
Parker Hannifin Corporation
Industrial Hose Products
www.safehose.com
