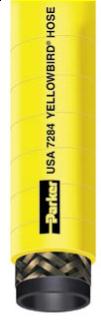

YELLOW BIRD®
Air & Water Hose – MSHA
Series 7284
YELLOW BIRD® hose is designed for high pressure water service in underground
mines. The SBR tube, wire braided construction, and nitrile/PVC cover also make
it an excellent high pressure air or general purpose hose.The flame resistant yellow
cover is branded with the MSHA legend.
4:1 Design factor
Tube Black SBR
Cover Yellow NBR/PVC, PIN-PRICKED
Reinforcement One or multiple wire braids
Temperature Range -20°F to +212°F (-29°C to +100°C)
Branding PARKER USA 7284 YELLOW BIRD ® HOSE
(DATE CODE) DE2
XXXX PSI MAX WP
MSHA IC-123/17 - FLAME RESISTANT
Brand Description Ink Brand - Black letter color
Compare to Thermoid Hercules 1000; Boston Concord Yellow Jack;
Gates 1000MP/Mine Spray
LENGTHS: Random lengths on nominal 500 ft. reels. 50ft. + 100ft. coils also avail-
able.
COUPLINGS: For permanent crimp specifications, refer to CrimpSource. For assem-
bly guidelines and additional coupling options, refer to NAHAD Industrial Hose
Assembly Guidelines.
Part No.
ID
(in.)
ID
(mm)
Reinf.
Braids
OD
(in.)
OD
(mm)
Approx.
Wt. per
100 Ft.
Min.
Bend
Radius
Max.
Rec.
WP
7284-381 ³/8 9.5 1 0.688 17.5 25 6.0 1500
7284-501 ½ 12.7 1 0.969 24.6 37 7.0 1000
7284-751 ¾ 19.1 1 1.219 31.0 56 9.5 1000
7284-1001 1 25.4 1 1.469 37.3 69 12.0 1000
7284-1252 1¼ 31.8 2 1.719 43.7 90 15.5 1000
