MSHA approved for mine service >>
Applications
• Mines
• Air Tools
• Dust
Suppression
Systems
STINGER™ II
Mine Air & Water Hose
Series 7268

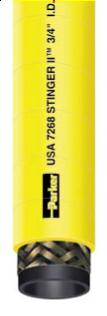

Stinger II hose is a very durable hose manufactured to handle the severe service
requirements of underground mine spray service. The bright yellow MSHA cover is
flame, oil and abrasion resistant. This hose is also an excellent choice for high pres-
sure air and washdown service.
4:1 Design factor (2 in. - 3.5:1)
Tube Black Neoprene
Cover Yellow NBR/PVC
Reinforcement Wire braid
Temperature Range -20°F to +212°F (-29°C to +100°C)
Branding PARKER USA 7268 STINGER II ™
3/4 ID 1000 PSI MAX WP
MSHA IC-123/17 B5 (DATE CODE)
Brand Description Ink Brand - Black letter color
Compare to Goodyear Minespray, Super Ortac; Gates 1000MP/Mine
Spray; Boston Concord Yellow Jack
LENGTHS: ¾" and 1" on 500 ft. reels, 5 piece max., 50 ft. min. length. 50 ft., 100 ft., also
available, 200 ft. available on quotation.
COUPLINGS: For permanent crimp specifications, refer to CrimpSource. For
assembly guidelines and additional coupling options, refer to NAHAD Industrial Hose
Assembly Guidelines.
Part No.
ID
(in)
ID
(mm)
Reinf.
Braids
OD
(in)
OD
(mm)
Approx.
Wt. per
100 Ft.
Min.
Bend
Radius
Max.
Rec.
WP
7268-751 ¾ 19.1 1 1.045 26.5 36 6.0 1000
7268-1001 1 25.4 1 1.339 34.0 53 8.0 1000
7268-1251 1¼ 31.8 1 1.631 41.4 66 12.0 1000
7268-1501 1½ 38.1 1 1.890 48.0 86 14.0 1000
7268-2001 2 50.8 1 2.440 62.0 141 18.0 1000
