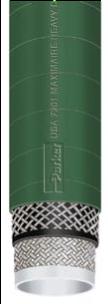

MAXIMAIRE
®
Heavy Duty Non-Conductive Air Hose
Series 7201
This hose is designed for air drills and pneumatic service in mines, quarries, general
construction and industrial jobs where a heavy duty braided hose is needed. Built
with an oil resistant tube and an oil and abrasive resistant cover. Hose is electrically
non-conductive with a minimum resistance of one megohm per inch at 1000 volts, DC.
4:1 Design factor
Tube
White Neoprene
Cover
Green Hypalon
Reinforcement
Multiple textile braids
Temperature Range
-20°F to +180°F (-29°C to +82°C)
Branding
PARKER USA 7201 MAXIMAIRE
HEAVY DUTY AIR HOSE
2 1/2 ID XXX PSI MAX WP
(DATE CODE)
Brand Description
Embossed Brand
Compare to
Goodyear Ortac 400; Boston Shock Safe, Mineforce
LENGTHS:
Random lengths on reels. ½" and ¾" reels are 450 ft. – 550 ft. each and
1" reels are 400 ft. – 600 ft. All reels have a max. of 5 pieces, shortest piece 50 ft;
1¼" thru 2" 150 ft. in cartons max. of 3 pieces, 50 ft. min. length.
COUPLINGS:
For permanent crimp specifications, refer to CrimpSource. Other
available coupling options: Series 7615, 7692. For assembly guidelines and additional
coupling options, refer to NAHAD Industrial Hose Assembly Guidelines.
Part No.
ID
(in.)
ID
(mm)
Reinf.
Braids
OD
(in.)
OD
(mm)
Approx.
Wt. of
100 Ft.
Min.
Bend
Radius
Max.
Rec.
WP
7201-502A
7201-502050
7201-502100
½
½
½
12.7
12.7
12.7
2
2
2
0.938
0.938
0.938
23.8
23.8
23.8
31
31
31
5.0
5.0
5.0
500
500
500
7201-752A
7201-752050
7201-752100
¾
¾
¾
19.1
19.1
19.1
2
2
2
1.250
1.250
1.250
31.8
31.8
31.8
48
48
48
6.5
6.5
6.5
500
500
500
7201-1002A
7201-1002050
7201-1002100
1
1
1
25.4
25.4
25.4
2
2
2
1.562
1.562
1.562
39.7
39.7
39.7
70
70
70
8.0
8.0
8.0
500
500
500
7201-1252K
1¼ 31.8
2 1.813 46.1
81
9.0
350
7201-1503K
1½ 38.1
3 2.125 54.0 106
13.0 350
7201-2003K
2 50.8
3 2.656 67.5 153
15.0 350
7201-2503K
2½ 63.5
3 3.250 82.6 210
22.0 300
