Abrasion resistant for tough environments >>
Applications
• Mining
• Construction
• Water and Air
Transfer

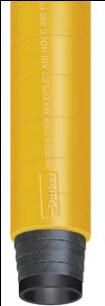

MAXIFLEX® Air Hose
Series 7308
MAXIFLEX® hose is light and flexible, yet sufficiently rugged to withstand the abuse
and hard service found in mining and construction. It has excellent resistance to
abrasion, gouging and weathering.
3:1 Design factor
Tube Black SBR
Cover Yellow SBR
Reinforcement Multiple textile plies
Temperature Range -20°F to +200°F (-29°C to +93°C)
Branding PARKER SERIES 7308 MAXIFLEX AIR HOSE
250 PSI WP
MADE IN USA
Brand Description Embossed Brand
Compare to Goodyear Plicord Air 300
LENGTHS: 100 ft. lengths up to 200 ft. on quotation.
COUPLINGS: For permanent crimp specifications, refer to CrimpSource. Other
available coupling options: Series 7615, 7692. For assembly guidelines and additional
coupling options, refer to NAHAD Industrial Hose Assembly Guidelines.
Part No.
ID
(in.)
ID
(mm)
Reinf.
Plies
OD
(in.)
OD
(mm)
Approx.
Wt. per
100 Ft.
Min.
Bend
Radius
Max.
Rec.
WP
7308-1004 1 25.4 2 1.488 37.8 59 6.0 250
7308-1254 1¼ 31.8 2 1.740 44.2 71 7.5 250
7308-1504 1½ 38.1 2 2.031 51.6 95 8.5 250
7308-2004 2 50.8 4 2.598 66.0 134 14.0 250
7308-2504 2½ 63.5 4 3.098 78.7 163 24.0 250
7308-3004 3 76.2 4 3.598 91.4 193 36.0 250
7308
30
HOSE
Air & Multi-Purpose
