4
I.D. O.D.
MAX.W.P.
LENGTH APPROX. WT.
at 70°F psi
1/4" 1/2" 210 100 ft 9 lbs
3/8" 5/8" 180 100 ft 12 lbs
1/2" 13/16" 150 100 ft 21 lbs
5/8" 1" 100 100 ft 32 lbs
3/4" 1-1/8" 100 100 ft 36 lbs
1" 1-3/8" 84 100 ft 47 lbs
1-1/4" 1-3/4" 84 50 ft 39 lbs
1-1/2" 2" 84 50 ft 43 lbs
2" 2-1/2" 70 50 ft 56 lbs
Code: SF-60

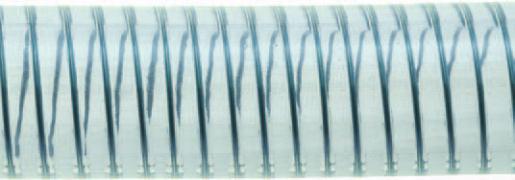

P.V.C. SPRING WIRE SUCTION HOSE
■ APPLICATIONS: Food and Beverage Dispensing
Coolant, Non-Toxic formulation
conforming to FDA requirements.
■ CONSTRUCTION: One Spring Wire, Clear PVC Wall.
■ TEMPERATURE RANGE: 20°F to 150°F
■ CAUTION: For liability purposes, if temperature
exceeds 110°F the working pressure
will go down. Please check with
factory to ensure sufficient safety factor.

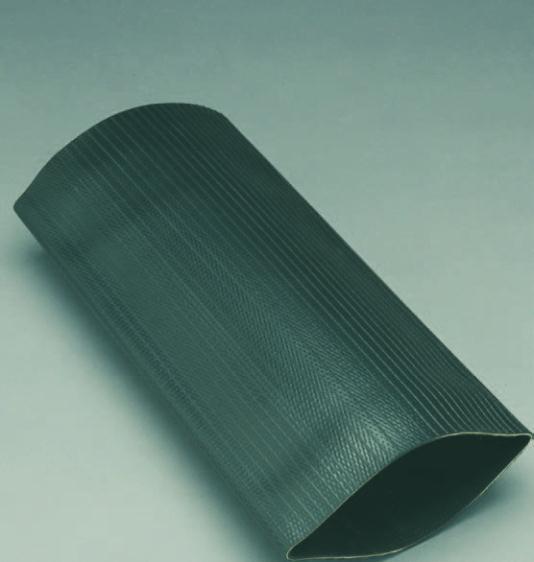

Code: SF-70
Circular Woven
Nitrile Rubber Black
NOMINAL WEIGHT WORKING
SIZE THICKNESS lbs/ft PRESSURE END PULL
■ COVER: NBR Ribbed. Resistant to oil, abrasion and weathering.
■ TEMP. RANGE: -20°F to 200°F
■ APPLICATION: Industrial wash down, Pump discharge,
submersible pump discharge, Bypass systems,
Irrigation/Watering, Fertilizer distribution, Cable cover,
Pollution control flotation, Limited oil & Chemical use,
Dewatering jetting.
■ STND. LENGTH: 200 ft.
1-1/2" 0.08" 0.21 lbs 150 psi 1,980 lbs
2" 0.08" 0.30 lbs 150 psi 2,860 lbs
3" 0.10" 0.46 lbs 150 psi 3,960 lbs
4" 0.10" 0.64 lbs 150 psi 5,280 lbs
6" 0.12" 1.11 lbs 150 psi 11,000 lbs
8" 0.12" 1.51 lbs 150 psi 14,520 lbs
SF-70
SF-60 ®
®
