1-1/2" 1.61" 0.090" 200 psi 630 2,300 78 lbs
2" 2.08" 0.100" 200 psi 630 4,700 108 lbs
2-1/2" 2.56" 0.100" 175 psi 530 5,300 120 lbs
3" 3.07" 0.118" 200 psi 600 11,000 201 lbs
4" 4.13" 0.157" 200 psi 600 16,000 340 lbs
6" 6.18" 0.197" 150 psi 600 25,000 656 lbs
8" 8.19" 0.236" 150 psi 600 52,200 1023 lbs
NOMINAL APPROX. Max. W.P. DESIGN T.S. LBS. APPROX.
SIZE I.D. WALL at 70°F psi B.P. psi Approx. Wt. 300ft
at cut
■ TOUGH HEAVY DUTY APPLICATIONS: Mines, Irrigation,
Construction, etc., for use with high
tension and high working pressure.
■ TEMP. RANGE: -5°F to 170°F
■ STND. LENGTH: 300 ft. per bale (Special order for
longer lengths)
■ CONSTRUCTION: 3-Ply Yarns. Both tube and cover are
extruded simultaneously to obtain
maximum bonding.
■ CAUTION: For liability purposes, if temperature
exceeds 110°F the working pressure will
go down. Please check with factory to
ensure sufficient safety factor.
Code: SF-20

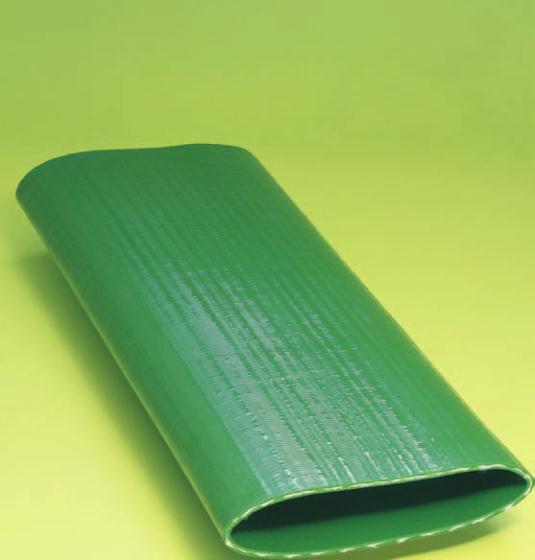

P.V.C. MINE OR
IRRIGATION HOSE, GREEN
SF-20 ®
1-1/2" 1.61" 0.079" 150 450 80 lbs
2" 2.09" 0.087" 150 450 103 lbs
2-1/2" 2.56" 0.091" 150 450
3" 3.07" 0.095" 150 450 164 lbs
4" 4.13" 0.102" 150 450 254 lbs
6" 6.18" 0.119" 150 450
8" 8.19" 0.134" 115 350
NOMINAL APPROX Max. W.P. DESIGN APPROX.
SIZE I.D. WALL at 70°F psi B.P. psi Wt. 300ft
64 lbs
85 lbs
119 lbs
158 lbs
225 lbs
375 lbs
566 lbs
Code: SF-50

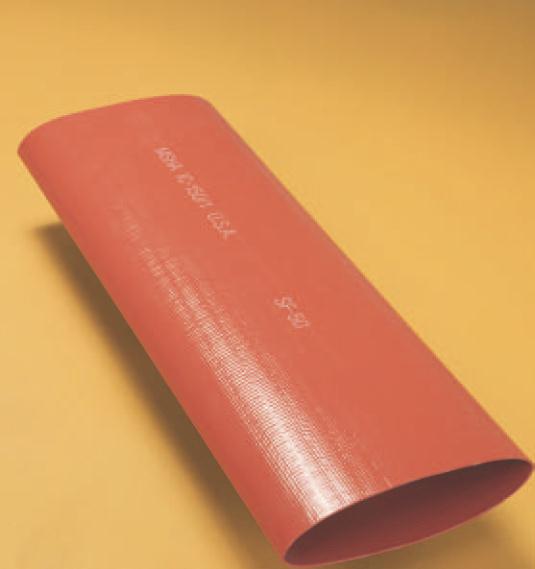

P.V.C. 150 PSI RANGE
BRICK RED DISCHARGE HOSE
■ STND. LENGTH: 300 ft. per bale (Special order for
longer lengths)
■ TEMP. RANGE: -5°F to 170°F
■ APPLICATIONS: Mines, Construction, etc.
■ CONSTRUCTION: 3-Ply Polyester Yarns.
Both tube and cover are extruded
simultaneously to obtain
maximum bonding.
■ FLAME RESISTANT: USMSHA IC-150/1
(Size 1-1/2", 2", 2-1/2")
Special order only
■ CAUTION: For liability purposes, if temperature
exceeds 110°F the working pressure will
go down. Please check with factory to
ensure sufficient safety factor.
APPROX.
Wt. 300ft
U.S.A JAPAN
SF-50 ®
