SPIRALITE®5000
PETROLEUM TANK DROP HOSE
WITH STATIC WIRE
NBR RUBBER
OIL AND GREASE
SUCTION HOSE
4000
inch 2" 2.5" 3" 4"
inch 2.53 3.12 3.69 4.77
psi 60 50 50 45
in/HG 28 28 28 28
inch 9 11 12 17
psi 180 150 150 135
lbs./ft .87 1.02 1.61 2.30
NOMINAL SIZE
APPROX. O.D.
RECOMMENDED
W.P. AT 68F
VACUUM RATING
AT 68F
BEND RADIUS
AT 68F
APPROX. B.P. AT 68FS
APPROX. WT.
• This hose is engineered with a NBR tube & cover for the
pressure, gravity flow or suction movement of gasoline
and petroleum base products with an aromatic content
not to exceed 50%.
• Spiralite 5000 is compounded especially to remain
flexible to temperature readings of -30°F.
• Standard hose includes static conductive
tube and copper static wire.
• Spiralite 5000 is manufactured to offer
– Extra Durability and abrasion resistance.
– High resistance to gasoline and natural elements
such as ozone weather cracking.
– Lightweight for ease of handling.
• See Banding Sleeve 5500 for drop hose
• See W187 for vapor recovery hose.

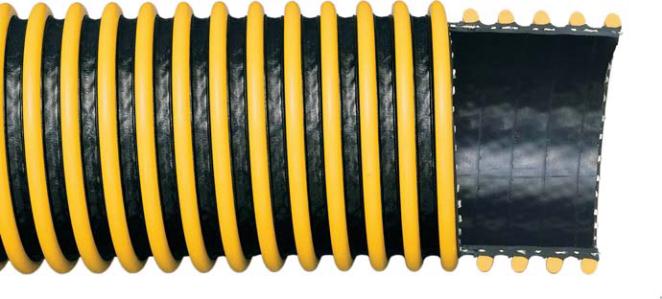

CONSTRUCTION: Tube-Black Synthetic Rubber
Reinforcement - Polyester and Static Wire
Cover - Yellow PVC Helix
Banding Sleeve - Black PVC
LENGTH: Spiralite 5000 Drop Hose —100'
ID OD WP @ 72°F BURST @ 72°F BEND. RADIUS" WEIGHT/FT.
2" 2.66 100 400 4 .87
2-1/2" 3.19 100 360 5 1.13
3" 3.76" 65 260 6 1.71
4" 4.79" 65 260 8 2.44

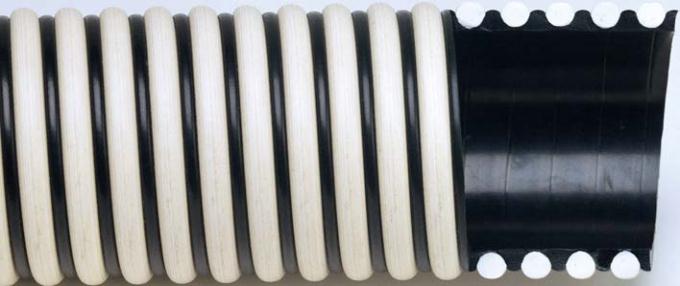

• APPEARANCE/CONSTRUCTION:
Black NBR-blended rubber tube with
white PVC helix.
Corrugated wall, smooth interior.
• BENEFITS:
– Excellent oil resistance.
– Lightweight and flexible.
• GENERAL APPLICATIONS:
– Grease trap cleaning.
– Oil suction and transfer.
• TEMPERATURE RANGE:
-30°F to +140°F
• STANDARD LENGTHS:
2" thru 4" 100ft.
