SPIRALITE®2800
EPDM RUBBER HOSE
POLY-ETHYLENE/SOLID WIRE HELIX
17

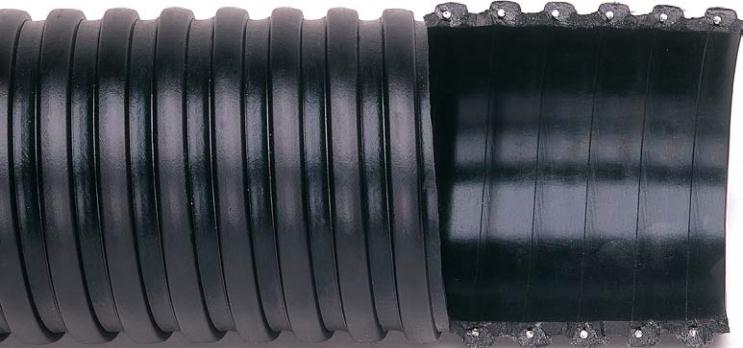

• APPEARANCE/CONSTRUCTION:
EPDM rubber tube with integrated solid
wire with a poly-ethylene helix.
Corrugated exterior, smooth interior wall.
• BENEFITS:
– Wire helix resist deformation at higher
temperatures.
– Good flexibility in higher temperature
suction application.
– PVC reinforcement resist crushing.
– Polyethylene helix reduces drag.
• GENERAL APPLICATIONS:
– Suction application in higher
temperature conditions.
– Fly ash suction applications.
– Vacuum trucks.
• TEMPERATURE RANGE:
-30°F to +220°F
• STANDARD LENGTHS:
3" thru 6" 100ft.
8" 25ft.
inch 3" 4" 5" 6" 8"
inch 3.57 4.69 5.81 6.82 8.56
psi 30 29 28 28 25
inch 6 6 10 10 15
psi 100 90 85 85 75
lbs./ft 1.45 2.20 3.25 3.91 5.20
NOMINAL SIZE
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F
*APPROX. B.P. AT 68°F*
APPROX. WT.
