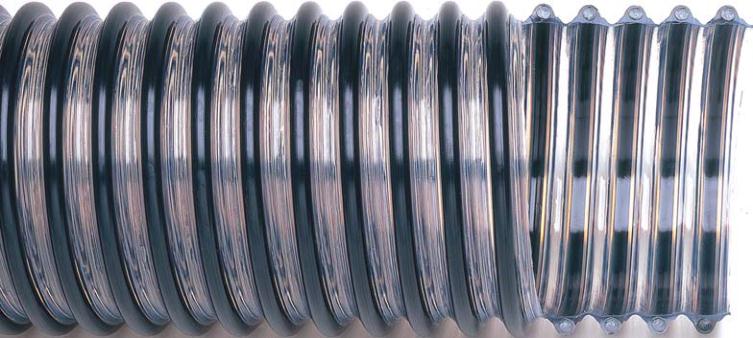

URETHANE BLENDED DUCT HOSE
SPIRALITE®960
• APPEARANCE/CONSTRUCTION:
PVC/Polyurethathane blended tube with
PVC helix.
Corrugated exterior with smooth interior.
• BENEFITS:
– Polyurethane blended wall for added
abrasion resistance.
– Improved wall design enhances
flexibility.
– PVC reinforcement resist crushing.
– Extremely flexible.
• GENERAL APPLICATIONS:
– Tight bend areas with light abrasive
material transfer.
– Blown insulation applications.
– Ice slinger hose.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
3" thru 6" 100ft.
inch 3" 4" 5" 6"
inch 3.50 4.57 5.57 6.60
psi 10 10 10 7
inch 4 6 6 7
psi 35 35 30 25
lbs./ft .86 1.09 1.38 1.69
NOMINAL SIZE
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P. AT 68°F
APPROX. WT.
23540 TELO AVENUE, TORRANCE, CA 90505 • PHONE: (310) 539-1822 • (323) 775-4001 • (800) 421-5196 • FAX: (310) 539-5826 13
NEW!
* BEND RADIUS FOR CONTINUOUS SERVICE.
