PVC-POLYURETHANE BLEND
MATERIAL HANDLING HOSE

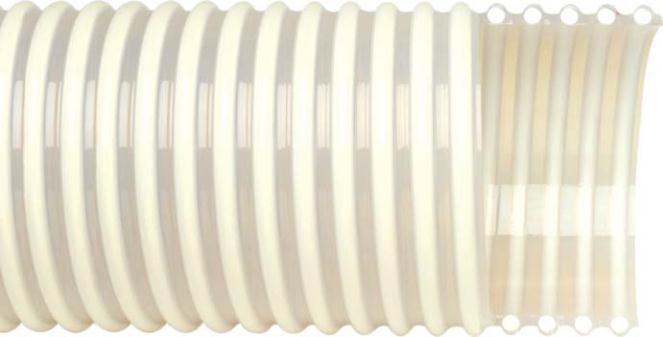

• APPEARANCE/CONSTRUCTION:
Milky-white PVC/Polyurethane tube with
white PVC helix.
Corrugated cover, smooth tube.
• BENEFITS:
– Excellent combination of flexibility
and abrasion resistance.
• GENERAL APPLICATIONS:
– Abrasive material handling.
– Transferring bark, straw and
mulch for lawn care.
– Handling insulation materials.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
2" thru 6" 100ft.
inch 2" 3" 4" 5" 6"
inch 2.44 3.54 4.65 5.73 6.98
psi 40 35 35 30 30
in/HG 28 28 28 28 28
inch 4 6 8 12 15
psi 120 105 105 90 90
lbs./ft .58 1.08 1.71 2.41 4.22
NOMINAL SIZE
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P. AT 68°F
APPROX. WT.
PVC - POLYURETHANE BLEND
DUCT AND BLOWER HOSE
SPIRALITE® 940
6"
54
.97
10"
30
1.61
inch
psi
lbs./ft.
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P.
AT 68°F
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.

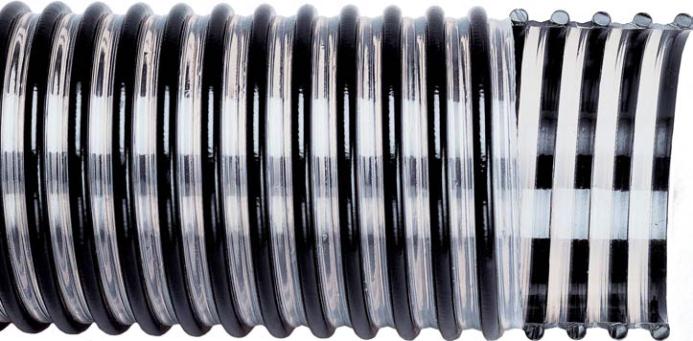

• APPEARANCE/CONSTRUCTION:
Clear PVC/Polyurethane wall
with black helix.
Corrugated wall, and smooth interior.
• BENEFITS:
– Unique blend of material provide
excellent abrasion resistance.
• GENERAL APPLICATIONS:
– Material conveying.
– Transferring abrasive applications.
– Bark blowing applications.
• TEMPERATURE RANGE:
-10°F to 130°F
• STANDARD LENGTHS:
4" and 5" 100ft.
4.49"
15
5.69"
10
NOMINAL SIZE inch 4" 5"
inch
psi
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
* BEND RADIUS FOR CONTINUOUS SERVICE.
