PT Coupling Company • P.O. Box 3909 • Enid, OK 73702 • Tol l-Free: (800) 654-0320 • Tol l-Free Fax: (800) 828-2649 • Fax: (580) 237-3435 • info@ptcoupl ing.com • www.ptcoupl ing.com
72

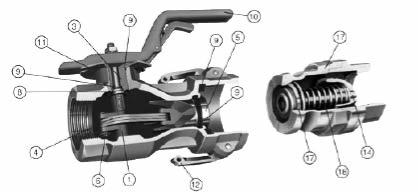

Ref # Description Material 1-1/2" Item # 2" Item # 3" Item #
1 Stem 17-4PH SS 44001502 44000202 44000355
3 Bushing 303 SS 44001503L 44000203L 44000303L
4 Link 304 SS 44001504 44000204 44000304
5 Poppet CF8M 44001505 44000205 44000305
6 Poppet Pin Kit 304 SS 44000150 44000261 44000318
8 O-Ring Retainer 303 SS 44001508 44000208 N/A
9 Coupler Seal Kit Buna-N 40001515 40000217 44000315
Viton 44001523 44000223 44000316
EPDM 44001550 44000229 44000360
Teflon Encap. Viton 44001524 44000224 44000317
10 Handle Kit Stainless A351 CF8M 44001512 44000212 44000312
11 Stop Plate 303 SS 44001525 44000225 44000325
12 Cam Arm ASBY Sintered SS 5001520A 5001520A 5001530A
12a STA-LOK II Cam Asby Sintered SS 44001564 44001564 44000321
14 Adapter Poppet Kit 303 SS 44001565 44000262 44000319
17 Adapter Seal Kit Buna-N 40001540 40000240 44000340
Viton 44001544 44000244 44000344
EPDM 44001560 44000235 44000365
Teflon Encap. Viton 44001545 44000245 44000345
18 Spring SS 44001538 44000238 44000338
19 Swivel Seal Kit Buna-N N/A 40010290 40010390
Viton N/A 40010280 40010380
MAXI-DRY
COUPLER AND
ADAPTER
REPLACEMENT
PARTS
Made in U.S.A.
