PT Coupling Company
•
P.O. Box 3909
•
Enid, OK 73702
•
Tol l-Free: (800) 654-0320
•
Tol l-Free Fax: (800) 828-2649
•
Fax: (580) 237-3435
•
info@ptcoupl ing.com
•
www.ptcoupl ing.com
71
MAXI-DRY
Made in U.S.A.

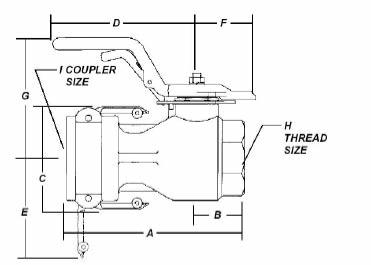

Size
Coupler
Pressure Rating
A B C D E
F
G
H
I
1 1/2"
MD15D
200 PSI
6.9
1.5 3.9 6.1 4.1 2.5 5.0 1 1/2" NPT 2.0
2"
MD20D
150 PSI
7.5
2.0 4.4 6.1 4.3 2.5 5.1
2" NPT
2.5
3"
MD30D
125 PSI
9.5
2.5 6.5 9.0 5.5 4.0 6.0
3" NPT
4.0
3” x 4”
MD30X40
125 PSI
9.5
2.5 6.5 9.0 5.5 4.0 6.2
4” NPT
4.0
