OETIKER
Quick-Connectors
Product Group 200
OETIKER Quick-Connectors are a new system for the fast, safe connection
of fluid supply lines. They can be developed for specific applications
and supplied in different versions to suit customers’ requirements.
Because they can be fitted without tools, OETIKER Quick-Connectors
are the optimal connector for numerous industrial applications.
OETIKER Quick-Connectors drastically reduce installation times.
OETIKER Quick-Connectors are suitable for applications that make
severe demands – whether as a connection element for safety-relevant
components, or for installation on air conditioners, oil coolers, brake
lines, turbo-units, etc.
Material
– 200 Body:
Material no. 1.0737 / UNS G12144
Circlip:
Material no. 1.4310 / UNS S30100
Seal:
NBR
Other materials and seal variants available on request.
Size range
DN6 - DN18
Connection / Disconnection
To make the connection, push the grooved tube into the Quick-Connector
until it engages.
To disconnect, push the disconnection sleeve / tool into the Quick-
Connector to the stop, hold it in this position, and pull out the tube.
For detailed technical information, see Technical Data Sheet.
Removal sleeve loose on grooved tube
Customer-specific tool for removal
For detailed information, please request the Technical Data Sheet for this OETIKER
product group. Send your sample parts and all relevant information for your specific
application to OETIKER, and you will receive our recommendation for product type,
diameter, and method of installation.
Features
• Innovative connection solution
• Compact design through optimised use of material
• Can be installed and removed many times
• Optimised cross-section for maximum flow
• Tube end can be utilised as a connecting element
• Plug/tube is free to rotate
• Cracking pressure up to 1100 bar
• Fast, simple and safe installation
• Customer-specific tool for removal

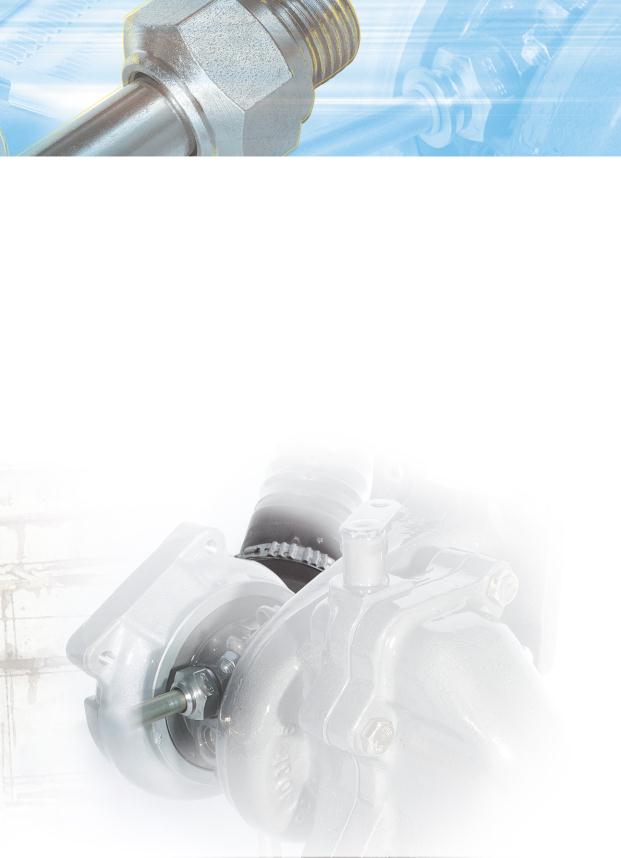

Application Example
Quick-Connector as supply connection
for oil or cooling-water lines
