292
S
OLENOID
V
ALVES
P
NEUMATICS
A
CCESSORIES
Part # Port Size
NPT
Operating Pressure
psi
bar
83-001
1/4
1.45 - 232 0.1 - 16
----
83-002
1/2
1.45 - 232 0.1 - 16
----
83-003
3/4
1.45 - 232 0.1 - 16
----
83-004
1
1.45 - 232 0.1 - 16
----
83-005
1-1/2
1.45 - 145 0.1 - 10
----
83-006
2
1.45 - 145 0.1 - 10
----

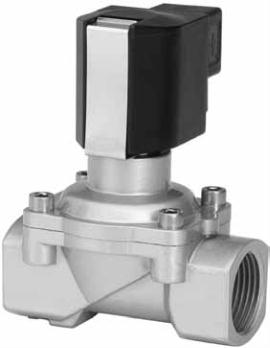

2/2-way Solenoid Valves
• Normally Closed
• Pressure Range:
See table
• Temperature:
Fluid max. 194°F (+90 °C)
Ambient max. 122 °F (+50 °C)
• Material:
Body BRASS
Seat Seal NBR (Standard)
Indirectly actuated Diaphragm design
Part # Port Size
NPT
Length ( End to End )
in.
mm
83-100
1/2
2.36
60
----

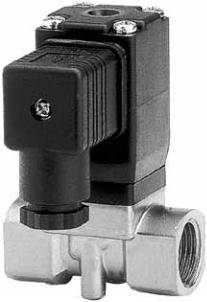

• Normally Closed
• High flow rate
• Clear design
• Compact solenoid with integrated core tube
• Pressure Range:
0 - 145psi (10 bar)
• Temperature:
Fluid max. 194°F (+90 °C)
Ambient max. 122 °F (+50 °C)
• Material:
Body BRASS
Seat Seal NBR (Standard)
Part # Port Size
NPT
83-201
1/4
----
83-202
1/2
----
83-203
3/4
----
83-204
1
----
83-205
1-1/2
----
83-206
2
----
• Normally Closed
• Pressure Range:
0 - 145 psi ( 10 bar )
• Temperature:
Fluid max. 194°F (+90 °C)
Ambient max. 122 °F (+50 °C)
• Material:
Body BRASS
Seat Seal NBR (Standard)

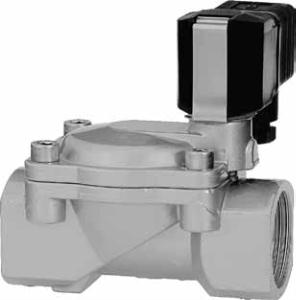

2/2-way Solenoid Valves
with forced lifting Diaphragm design
2/2-way Solenoid Valves
with forced lifting Diaphragm design
NEW
