291

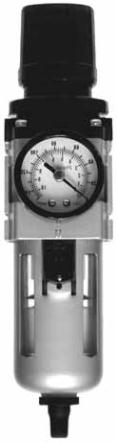

INTEGRAL FILTER REGULATOR
• Combines air filter and pressure regulator into one compact unit.
• Non-rising, push-lock pressure adjustment knob provides easy hand adjustment at any pressure.
• Adjustment knob can be removed to provide tamper-resistance.
• Aluminum bowl guard standard.
• 20 micron sintered bronze filter.
• Pressure gauge and auto-drain are included.
• Convenient see-through bowl guard.
• Auto-drain will automatically dispense contaminates collected by the filter, prevents overflow. Because manual
draining of filters is often overlooked in the normal industrial environment.
• Float type auto-drain has built-in filter screen to prevent clogging Internal float-type auto-drain.
TECHNICAL DATA
PARTS & ACCESSORIES
Part # Size
Description
I280 1/4" Integral Filter Regulator
----
I380 3/8" Integral Filter Regulator
----
I480 1/2" Integral Filter Regulator
----
Model Number
I280
I380
I480
Port Size NPTF 1/4"
3/8"
1/2"
Max. Air supply
210.0 PSI (15 kgf/cm
2
)
Max. Operating pressure
140 PSI (9.9 kgf/cm
2
)
Regulating range
7.0~120.0 PSI (0.5~8.5 kgf/cm
2
)
Pressure guage port size NPTF 1/8"
1/4"
Auto-drain port size NPT 1/8"M
1/8"F
Nominal filtration rating
20UM
Construction
Relieving Type
Operating temperature range
41°~140° F( 5~60°C )
Material
Body
Aluminum
Bonnet
Poly Aceta Diecast Aluminum
Filter Element
Sintered Bronze
Bowl
Polycarbonate
Bowl Guard
Aluminum
Weight LBS
1.5
3
3
Included accessory ( standard )
Auto drain, Pressure gauge, Mounting
bracket
Part #
Description
MB280
Mounting Bracket (I280)
----
MB380
Mounting Bracket (I280/480)
----
RN280
Retaining Nut (I280)
----
RN380
Retaining Nut (I280/480)
----
G280
Pressure Gauge (I280)
----
G380
Pressure Gauge (I280/480)
----
RF280
Replacement Filter Element (I280)
----
RF380
Replacement Filter Element
(I280/480)
----
Part #
Description
B280 Replacement Bowl (I280)
----
B380 Replacement Bowl (I380)
----
B480 Replacement Bowl (I480)
----
BG280
Replacement Bowl & Guard (I280)
----
BG380
Replacement Bowl & Guard (I380)
----
BG480
Replacement Bowl & Guard (I480)
----
BGA280
Replacement Bowl, Guard, Auto Drain (I280)
----
BGA380
Replacement Bowl, Guard, Auto Drain (I380)
----
BGA480
Replacement Bowl, Guard, Auto Drain (I480)
----
I
NTEGRAL
F
ILTER
R
EGULATORS
P
NEUMATICS
A
CCESSORIES
