260
C
LAMPS
T
-BOLT
C
LAMPS
B
OLT
C
LAMPS

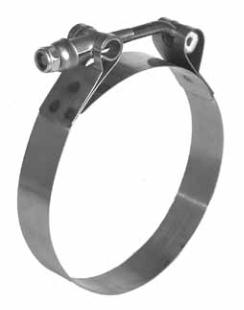

T-Bolt Clamps
• All designs meet SAE J1508 specifications.
• .025” Band Thickness
• 3/4” Wide Band
• Band Material: 300 Series Stainless Steel
• Bolt Material: 300 Series Stainless Steel
•
Nut Material: 300 Series Stainless Steel
•
Nuts are Self-locking
•
Torque Rating 75 in/lb
Purpose:
To provide a quick, yet effective
means of clamping a variety of fittings to a
wide range of hose. T-Bolts can be applied with
a standard 7/16” socket wrench. They provide
360
0
sealing surface by using a shoe or formed
bridge.
Services:
The T-Bolt clamp is a high strength,
reliable clamp with numerous applications in
both the commercial and industrial markets
including hose and ductwork connections for
air, oil, water and other types of low pressure
Nominal Size
O.D. Range
Part#
From:
To:
1-1/4
1-5/32"
1-15/32"
840-131
----
1-1/2
1-3/8"
1-9/16"
840-150
----
1-3/4
1-5/8"
1-13/16"
840-175
----
1-7/8
1-3/4"
1-15/16"
840-188
----
2
1-7/8"
2-1/16"
840-200
----
2-1/4
2-1/8"
2-5/16"
840-225
----
2-3/8
2-1/4"
2-7/16"
840-238
----
2-1/2
2-3/8"
2-9/16"
840-250
----
2-9/16
2-11/32"
2-5/8"
840-256
----
2-5/8
2-13/32"
2-11/16"
840-263
----
2-3/4
2-17/32"
2-13/16"
840-275
----
2-7/8
2-21/32"
2-15/16"
840-288
----
3
2-25/32"
3-1/16"
840-300
----
3-1/8
2-29/32"
3-3/16"
840-312
----
3-1/4
3-1/32"
3-5/16"
840-325
----
3-1/2
3-9/32"
3-9/16"
840-350
----
3-3/4
3-17/32"
3-13/16"
840-375
----
3-53/64
3-19/32"
3-7/8"
840-382
----
4
3-25/32"
4-1/16"
840-400
----
4-1/4
4-1/32"
4-5/16"
840-425
----
4-1/2
4-9/32"
4-9/16"
840-450
----
4-3/4
4-17/32"
4-13/16"
840-475
----
5
4-25/32"
5-1/16"
840-500
----
5-1/4
5-1/32"
5-5/16"
840-525
----
5-1/2
5-9/32"
5-9/16"
840-550
----
5-3/4
5-17/32"
5-13/16"
840-575
----
6
5-25/32"
6-1/16"
840-600
----
6-1/4
6-1/32"
6-5/16"
840-625
----
6-1/2
6-9/32"
6-9/16"
840-650
----
6-3/4
6-17/32"
6-13/16"
840-675
----
7
6-25/32"
7-1/16"
840-700
----
7-1/2
7-9/32"
7-9/16"
840-750
----
8
7-25/32"
8-1/16"
840-800
----
8-1/4
8-9/32"
8-9/16"
840-850
----
8-7/8
8-21/32"
8-15/16"
840-888
----
Opens 1/16" above and tightens 1/8" smaller
then nominal I.D. for a total of 3/16" range
for clamps sizes 150 through 250. Opens 1/16"
above and tightens 7/32" smaller then nominal
I.D. for clamps sizes 256 through 750.
