174
• 200 WOG (cold water, oil, gas).
• 125 WSP (Saturated Steam).
• Full-port design for a better water flow.
• Screw-in Bonnet - Non-Rising Stem - Solid Wedge
• NPT Threaded ends to ANSI B1.20.1
• Cast iron handle.
• Forged Brass Body for 1/2" - 1"
• Cast brass body for 1-1/4" - 4".
• Each valve individually air tested under water.
Part# Size L H D1 d T S1 Box Case
940-130 1/4 1.57 2.91 2.09 .24 1/4-18 NPT .85 10 120 ----
940-131 3/8 1.61 2.91 2.09 .39 3/8-18 NPT .85 10 120 ----
940-132 1/2 1.575 2.874 2.087 0.50 1/2-14 NPT 1.03 10 100 ----
940-133 3/4 1.752 3.228 2.087 0.748 3/4-14 NPT 1.26 5 60 ----
940-134 1 1.984 3.661 2.283 0.984 1-11.5 NPT 1.51 5 40 ----
940-135 1-1/4 2.165 4.567 2.835 1.22 1-1/4-11.5 NPT 1.89 5 30 ----
940-136 1-1/2 2.283 4.98 3.11 2.496 1-1/2-11.5 NPT 2.17 4 24 ----
940-137 2 2.677 5.846 3.819 1.85 2-11.5 NPT 2.60 2 16 ----
940-138 2-1/2 3.661 7.638 4.252 2.48 2-1/2-8 NPT 3.27 2 8 ----
940-139 3 3.819 8.839 4.961 2.835 3-8 NPT 3.86 1 6 ----
940-140 4 4.567 10.189 4.961 3.661 4-8 NPT 4.88 1 3 ----
BRASS GATE VALVES IPS
NO Description Material
1 Body C37700
2 Disk C37700
3 Seat PTFE
4 Cap C37700
5 Packing C37700
6 Stem C37700
7 Rubber Seat NBR
8 Packing Nut C37700
9 Handle HT200
10 Nameplate AL
11 Stem Nut A570 Gr.A

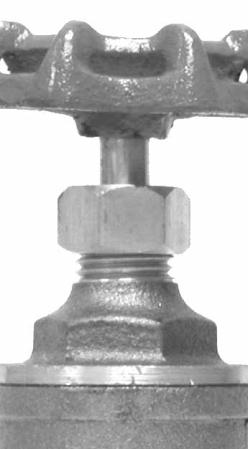

FULL PORT BRASS GATE VALVE
V
ALVES
GATE VALVES BRASS V ALVES
D1
L S1
10
9
3
8
7
6
5
4
1
2
H
S
C
d T
(THREAD)
METAL-TO-METAL CONTACT
D1
H
L
T d
"New dimensions for 1/2 thru 4"
