167
V
ALVES
ISO 9002 Manufacturer
FEATURES
• 600 PSI non-shock cold water, gas, oil
• 150 PSI saturated steam (WSP)
POS Components Materials N
1 Body Forged Brass 1
2 End Connection Forged Brass 1
3 Ball CP Brass 1
4 Ball Seats P.T.F.E. 2
5 Stem Brass 1
6 O-Ring NBR 80 1
7 Brass Ring Brass 1
8 Nut UNI 5771 Steel 1
9 Stem Seat P.T.F.E 1
10 Handle Steel 1
11 Stem Seat P.T.F.E 1
12 Nut Brass 1
• Minimal pressure drop due to large full size ports.
• Bottom loaded, pressure retaining stem.
• Pressure rated at 600psi (42 bars) WOG (non-shock) and
150psi (10.34 bars) saturated steam. Virgin TFE stem
packing seal, thrust washer and seats.
• Vinyl insulator on heavy duty plated carbon steel handles.
• Fast 1/4 turn open or close operation
• Low operating torque
• Adjustable stem packing gland.
• Maximum operating temperature: 2480F (120 0 C)
at 600 psi.
• Minimum operating temperature: -200F (-400C)
• Each valve individually tested.
• Forged Brass - for more strength.
• Tube ends to ANSI B16.22.
• Hard chromium plated solid ball.
• Bottom entry, blow-out proof stem.
• Use with ASTM B88 copper water tubing.

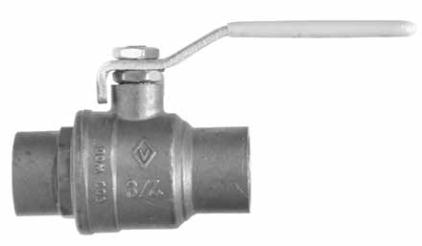

FULL PORT 600WOG FORGED BRASS BALL VALVE
C
A
E
CH
DN
B
12 7 11 6 8 10
9
5
1 2 3 4
Part# Size Dimension Inches
SWT DN A B C E CH Box Case
940-212 1/2 0.58 2.04 1.84 3.54 0.43 0.80 50 100 ----
940-213 3/4 0.74 2.74 1.99 3.78 0.63 1.05 30 60 ----
940-214 1 0.94 3.22 2.44 4.52 0.75 1.33 20 40 ----
940-215 1-1/4 1.26 3.81 2.85 4.52 0.83 1.60 12 24 ----
940-216 1-1/2 1.57 4.42 3.16 5.51 0.90 1.90 9 18 ----
940-217 2 1.97 5.31 3.44 5.51 1.30 2.37 6 12 ----
SWT x SWT
SOLDER ENDS BALL V ALVES BRASS VALVES
UL842, UL258, UL125,FM
FM U L
