Heavy-Duty Constant Tension
14
FLEX-GEAR® CLAMPS
To eliminate “cold flow” leakage, you have to shut off the
leak paths. Flex-Gear ® heavy-duty constant tension clamps
provide the self-adjusting band you need for a dependable
seal, even in the coldest conditions.
Key features:
• Larger, heavier-gauge, precision-formed spring washers
provide higher rates of band tension and adjustment for
a more dependable seal
• Inner liner protects against shearing of hose surfaces
• Provides a uniform 360° seal
• Reusable

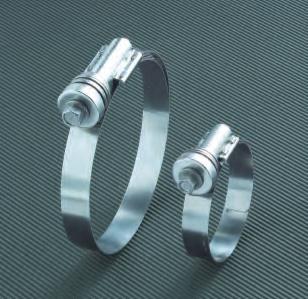

Flex-Gear HD
Flex-Gear
Ideal Flex-Gear HD ® 41 Series (Tridon N/A)
Screw: 3/8" hex-head. Carbon plated steel.
Band, liner and housing: 5/8" design. 300 grade stainless steel.
Washers: 300 grade stainless steel.
Ideal Flex-Gear HD ® 45 Series (Tridon N/A)
Screw: 3/8" hex-head. 410 stainless steel.
Band, liner and housing: 5/8" design. 300 grade stainless steel.
Washers: 300 grade stainless steel.
Ideal Flex-Gear® 47 Series (Tridon N/A)
Screw: 5/16" hex-head. 410 stainless steel.
Band, liner and housing: 9/16" design. 300 grade stainless steel.
Washers: 300 grade stainless steel.
Ideal Flex-Gear ® 43 Series (Tridon N/A)
Screw: 5/16" hex-head. Carbon plated steel.
Band, liner and housing: 9/16" design. 300 grade stainless steel.
Washers: 300 grade stainless steel.
SAE Ideal Ideal English (in.) Metric (mm) Fits Hose I.D.
Sizes Part No. Part No. Min.Dia. Max.Dia. Min. Dia. Max. Dia. Min.(in.) Max.(in.)
41 45
175 41175 45175 1 1 3/4 25 45 7/8 1 1/8
212 41200 45200 1 1/4 2 1/8 32 54 1 1 1/2
262 41250 45250 1 3/4 2 5/8 45 67 1 1/2 2
312 41300 45300 2 1/4 3 1/8 57 79 2 2 1/2
362 41350 45350 2 3/4 3 5/8 70 92 2 1/2 3
412 41400 45400 3 1/4 4 1/8 83 105 3 3 1/2
462 41450 45450 3 3/4 4 5/8 95 117 3 1/2 4
512 41500 45500 4 1/4 5 1/8 108 130 4 4 1/2
562 41550 45550 4 3/4 5 5/8 121 143 4 1/2 5
612 41600 45600 5 1/4 6 1/8 133 155 5 5 1/2
662 41650 45650 5 3/4 6 5/8 146 168 5 1/2 6
712 41700 45700 6 1/4 7 1/8 159 181 6 6 1/2
762 41750 45750 6 3/4 7 5/8 172 193 6 1/2 7
812 41800 45800 7 1/4 8 1/8 184 206 7 7 1/2
862 41850 45850 7 3/4 8 5/8 197 219 7 1/2 8
912 41900 45900 8 1/4 9 1/8 210 232 8 8 1/2
41 & 45
Series
Measurements in illustrations are in inches [millimeters]
43 & 47
Series
FLEX-GEAR HD CLAMPING RANGE
Non-compensating clamp cannot adjust
during extreme temperature changes,
allowing leaks to occur
Flex-Gear adjusts with the hose and fitting
to maintain constant tension on the
connection, eliminating leak paths
SAE Ideal Ideal English (in.) Metric (mm) Fits Hose I.D.
Sizes Part No. Part No. Min. Dia. Max. Dia. Min. Dia. Max. Dia. Min.(in.) Max.(in.)
43 47
10 43010 47010 9/16 1 1/16 14 27 3/8 5/8
12 43012 47012 5/8 1 1/4 16 32 3/8 3/4
16 43016 47016 13/16 1 1/2 21 38 3/4 7/8
20 43020 47020 13/16 1 3/4 20 44 3/4 1 1/8
24 43024 47024 1 1/16 2 27 51 7/8 1 3/8
28 43028 47028 1 5/16 2 1/4 33 57 1 1/4 1 5/8
32 43032 47032 1 9/16 2 1/2 40 63 1 1/2 1 7/8
36 43036 47036 1 13/16 2 3/4 46 70 1 3/4 2
40 43040 47040 2 1/16 3 52 76 2 2 1/4
44 43044 47044 2 5/16 3 1/4 59 82 2 1/4 2 1/2
48 43048 47048 2 9/16 3 1/2 65 89 2 1/2 3
FLEX-GEAR CLAMPING RANGE
For applications involving both high temperatures and the presence of chlorides, or any other special applications, contact us.
We will be glad to help solve your particular fastening problem. Our toll free Help Line is 1-800-221-0100. Ask for Clamp Product Engineering.
Additional sizes available upon request.
N/A - Not Available
