M Series Mini
Hosetract Industries, LTD.
•
P: 260.489.8828
•
F: 260.489.6088
11
MADE IN THE U.S.A.
For 3/8” and 1/2” Hose I.D.
•
Beaded edges on spool prevents hose
damage or injury to operator
•
Heavy 12 GA. base
•
Heavy duty ABS bearings require no
lubrication for years of dependable service
•
Fully adjustable brake - adjust with
hand knob
•
Only 14 1/2” tall
•
External swivel-O-rings can be changed by
simply removing one retaining ring
Model
Operating
Capacity Hose I.D.
Shipping
Number
Pressure
3/8” 1/2”
Weight
M 5-5-14
4000 PSI
75 FT.
50 FT.
20#
M 10-5-14
4000 PSI
150 FT. 100 FT.
23#
All reels shipped less
hose unless requested
on quote basis.
SERIES DIMENSIONS
A B C
M 5-5-14 5 7 2
3
/
4
M 10-5-14 10 12
7
3
/
4
M Series Mini Hose Reels also available in stainless steel. Call factory for more details.
Inlet — 1/2” FPT Max. Temp. — 200°F
FEATURES

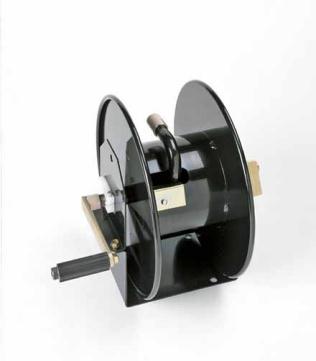

COMPACT MANUAL DRIVEN MINI-REEL. REEL
is best applied where a maximum of 150 ft. of 3/8” I.D.
hose is required, and where space or weight is a critical factor. This products is ideally fitted into tight space applications
such as small truck skid units for pesticides, pressure wash or deployment of air tools in the construction trades.
Mounting holes 1/2” dia.
4
1/2
7
1/2
14
6
3
5/8
A
B
C
