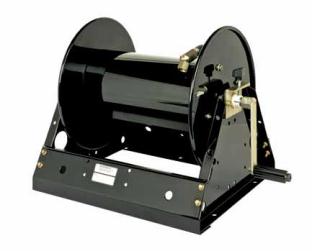

MANUAL DRIVEN HOSE REELS. REEL
is ideally applied where long lengths of hose are required, as in
Agriculture, Power Wash, Pest Maintenance, and Construction trades. Hose can be dispensed and retracted with
greater ease and expedience than coiling by hand. The Low-Pro series fits easily into height restriced areas.
Model
Operating
Capacity Hose I.D.
Shipping
Number
Pressure
3/8” 1/2”
Weight
M 5-5 Low-Pro
4000 PSI
75 FT.
50 FT.
30#
M 10-5 Low-Pro
4000 PSI
150 FT.
100 FT.
37#
M 15-5 Low-Pro
4000 PSI
225 FT.
150 FT.
49#
M 20-5 Low-Pro
4000 PSI
300 FT.
200 FT.
59#
M 25-5 Low-Pro
4000 PSI
375 FT.
250 FT.
72#
•
Fits into areas where less head room is
available
•
Flow through shaft for left or right
hand installation
•
Self lubricating ABS bearings
•
Mounting base is light and strong
•
External swivel-standardized O-rings
can be changed by simply removing
one retaining ring
•
Fully adjustable brake - adjust tension with
hand knob
Guide system available for 10”, 15”, 20”, 25” wide reels. Sold seperately (page 20).
FEATURES
Hosetract Industries, LTD.
•
P: 260.489.8828
•
F: 260.489.6088
MADE IN THE U.S.A.
Low-Pro Series
10
For 3/8” and 1/2” Hose I.D.
SERIES DIMENSIONS
A B C
7 3/4
5
8 3/4
10 12 3/4 13 3/4
15 18 1/2 19 1/2
20 23 1/2 24 1/2
25 28 1/2 29 1/2
LOW PRO
M 5-5
M 10-5
M 15-5
M 20-5
M 25-5
B
C
2
5
/
8
16
7
/
16
17
5
A
14
SERIES DIMENSIONS
A B C
7 3/4
5
8 3/4
10 12 3/4 13 3/4
15 18 1/2 19 1/2
20 23 1/2 24 1/2
25 28 1/2 29 1/2
LOW PRO
M 5-5
M 10-5
M 15-5
M 20-5
M 25-5
B
C
2
5
/
8
16
7
/
16
17
5
A
14
All reels shipped less
hose unless requested
on quote basis.
Inlet — 1/2” FPT   Max. Temp. — 200°F
Mounting holes 1/2” dia.
7/
2
5/8
B
