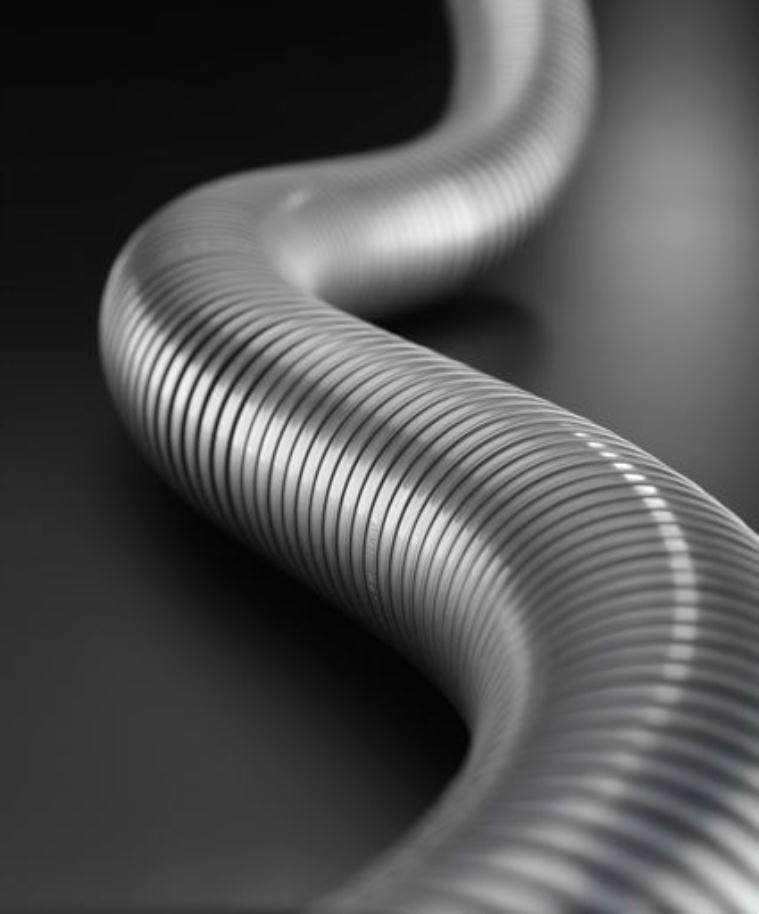

FLOPPYGUARD (Interlocked) is Hose Master’s line of floppy interlocked metal hose. Constructed
from a variety of alloys, this product offers flexibility, strength, durability, and crush resistance.
FloppyGuardTM is available in sizes from 3/16” - 1” ID, and can be covered with PVC or fluoropolymer
coatings for liquid-tight or chemical-resistant service. All FloppyGuardTM is ultrasonically cleaned prior
to packaging. Because of Hose Master’s ability to design and make its own tooling, Hose Master can
custom-design FloppyGuardTM to meet your exact specifications. Please contact Hose Master’s Inside
Sales Department for more information.
Nominal
Inside Diameter
(in.)
Minimum
Inside Diameter
(in.)
Minimum Bend Radius
(in.)
Weight Per Foot
(lbs.)
3/16 0.188 1.1
Weights vary with strip
thickness. Please
consult factory.
1/4 0.250 1.4
5/16 0.313 1.7
3/8 0.375 2.2
7/16 0.438 2.5
1/2 0.500 2.8
9/16 0.563 3.5
5/8 0.625 3.8
3/4 0.750 4.9
1 1.000 6.5

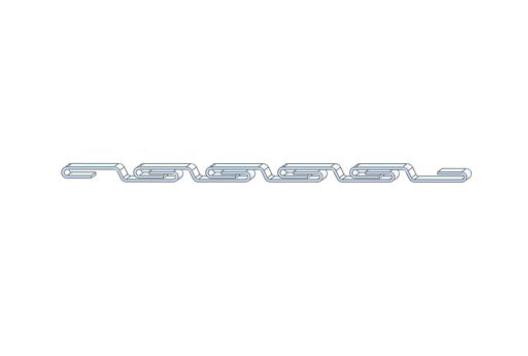

FLOPPYGUARDTM (Floppy Interlocked)
FLOPPYGUARDTM (Interlocked) Part Numbers SB Thickness Material
FLOPPYGUARDTM (Interlocked) Hose Specifications
7
FLOPPYGUARD TM Features
• Flexibility
• Abrasion-resistant
• Crush-resistant
• Chemical-resistant
• Ultrasonically cleaned
• Flexible, durable guard for wire, cable, or tubing
• Casing for fiber optic cables
• Internal and external protection of other hoses
TM
18 - Heavy Weight
20 - Extra Heavy Weight
Material Codes
SS - T304 Stainless Steel
16 - T316 Stainless Steel
Thickness Code
08 - Extra Light Weight
10 - Light Weight
12 - Medium Weight
FLOPPYGUARD TM Applications
Example: SB10SS is hose made from T304 stainless steel .010” thick.
