Inside
Diameter
(in.)
RX _____ 15 _____
(G,S,6,2) (S,C,4)
RX _____ 18 _____
(G,S,6,2) (S,C,4)
Weight per Foot
(lbs.)
Min. Bend Radius
(in.)
Weight per Foot
(lbs.)
Min. Bend Radius
(in.)
4 3.0 17 3.4 18
4.5 3.4 19 3.8 21
5 3.7 21 4.2 23
6 4.5 25 5.0 27
7 5.2 29 5.8 32
8 5.9 33 6.6 36
9 6.6 37 7.4 40
10 7.4 40 8.2 45
11 9.0 49
12 9.8 53
13 10.6 58
14 11.4 62
15 12.2 66
16 13.1 71

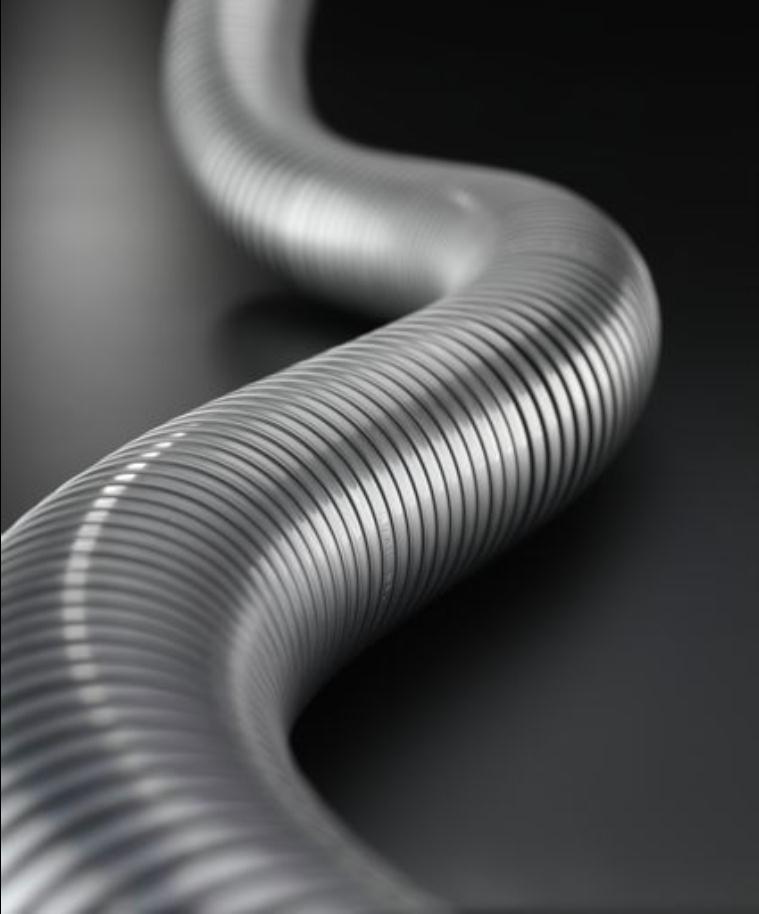

T-REX SBTM is Hose Master’s torque-resistant smoothbore metal hose with enhanced sealability. T-Rex SBTM
provides resistance to twisting, unwinding, and metal strip flare-up when cut.
T-REX SBTM (Smoothbore) Hose Specifications
Minimum bend radius is measured from the centerline of the hose. • T-Rex is sold in a relaxed state (see page 10 for explanation of “relaxed state”).
For packed hose add 10% to both weight per foot and minimum bend radius.
T-REX SBTM (Smoothbore) Part Numbers
RX Armor Material Armor Thickness Liner Material
Liner Material Codes
S - Stainless Steel
C - Carbon Steel
4 - Magnetic Liner
Armor Material Codes
G - Galvanized Steel
Armor Thickness Codes
(Torque-Resistant Smoothbore Interlocked) T-REX SBTM
T-REX SBTM Features
• Torque-resistant
• Leak-resistant
• Same great flexibility as standard smoothbore product
T-REX SBTM Applications
• Dry bulk pneumatic conveying
• Material handling
• Pellet transfer
• Bulk unloading
6
S - T304 Stainless Steel
6 - T316 Stainless Steel
2 - T201 Stainless Steel
Packing Options
Packing Type Features Maximum
Temperature
Low-Temp Elastomeric Max Press & Vacuum 200º F.
High-Temp Elastomeric Max Press & Vacuum 500º F.
Low-Temp Fiber Economical 180º F.
High-Temp Fiber Elevated Temperature 1000º F.
Metal Extreme Temperature 800º - 1200º F.
15 - Light Wt
18 - Medium Wt
Armor Liner Packing
Armor Liner
Example: RXS15S has an armor made of T304 stainless steel strip
.015” thick, and a stainless steel liner

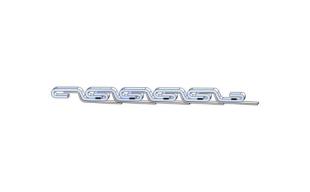

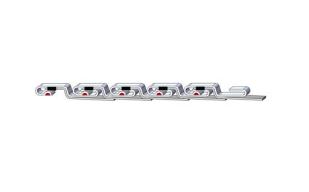

Unpacked Packed
Flow Flow
