Inside
Dia.
(in.)
RX 15 ____
(GS,SS,16,20)
RX 18 ____
(GS,SS,16,20)
RX 25 ____
(GS,SS,20)
Weight per Foot
(lbs.)
Min. Bend Radius
(in.)
Weight per Foot
(lbs.)
Min. Bend Radius
(in.)
Weight per Foot
(lbs.)
Min. Bend Radius
(in.)
1.5 0.7 6 0.9 6
2 1.0 8 1.1 8
2.5 1.2 10 1.4 10
3 1.4 12 1.6 12 2.5 13
3.5 1.6 14 1.9 14 2.8 15
4 1.8 16 2.2 16 3.2 17
4.5 2.0 17 2.4 17 3.6 19
5 2.2 19 2.7 19 4.0 21
6 2.7 23 3.2 23 4.7 25
7 3.1 27 3.7 27 5.5 29
8 3.5 30 4.2 30 6.2 33
9 3.9 34 4.7 34 7.0 37
10 4.4 38 5.2 38 7.7 41
11 5.7 42 8.5 45
12 6.2 45 9.3 49
13 6.7 49 10.0 53
14 7.2 53 10.8 56
15 7.7 56 11.5 60
16 8.2 60 12.3 64

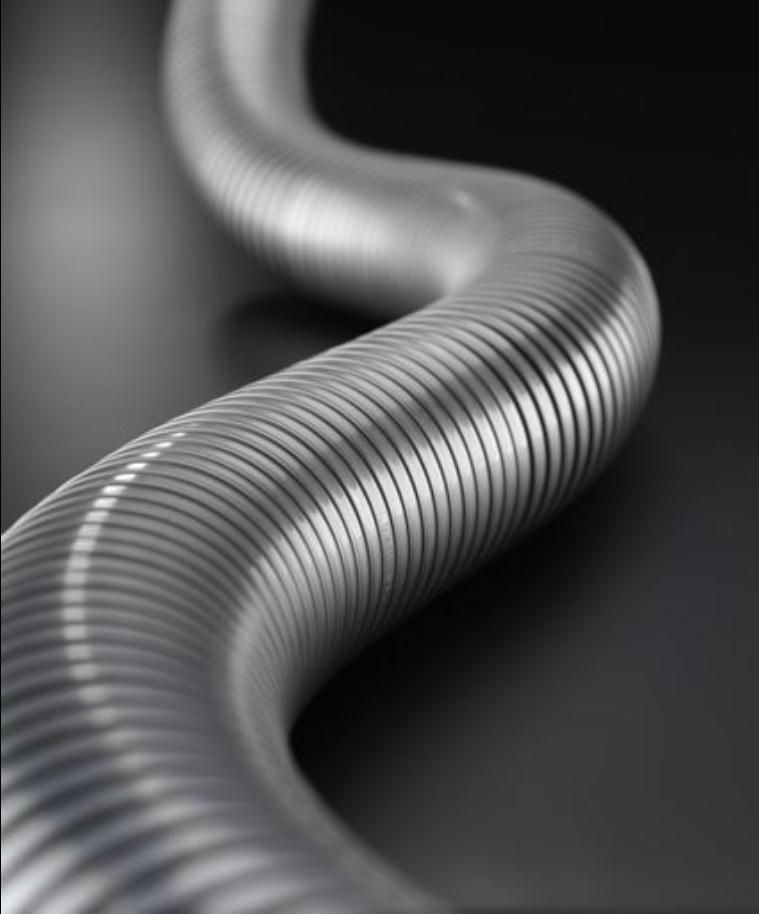

T-REXTM (Roughbore) is Hose Master’s torque-resistant stripwound metal hose with enhanced
sealability. T-RexTM provides resistance to twisting, unwinding, and metal strip flare-up when cut.
T-REXTM (Roughbore) Hose Specifications
Minimum bend radius is measured from the centerline of the hose. • T-Rex is sold in a relaxed state (see page 10 for explanation of “relaxed state”).
For packed hose add 10% to both weight per foot and minimum bend radius.
T-REX TM (Roughbore) Part Numbers
RX Thickness Material
Thickness Codes
15 - Light Weight
18 - Medium Weight
(Torque-Resistant Roughbore Interlocked) T-REXTM
T-REXTM Features
• Torque-resistant
• Leak-resistant
• Same great flexibility as standard interlocked products
T-REXTM Applications
• Dry bulk pneumatic conveying
• Material handling
• Pellet transfer
• Bulk unloading
4
SS -T304 Stainless Steel
16 - T316 Stainless Steel
20 - T201 Stainless Steel
Packing Options
Packing Type Features Maximum
Temperature
Low-Temp Elastomeric Max Press & Vacuum 200º F.
High-Temp Elastomeric Max Press & Vacuum 500º F.
Low-Temp Fiber Economical 180º F.
High-Temp Fiber Elevated Temperature 1000º F.
Metal Extreme Temperature 800º - 1200º F.
Material Codes
GS - Galvanized Steel

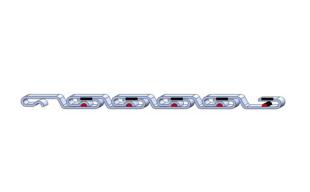

Packing
Example: RX15SS is made from T304 stainless steel strip
.015” thick.

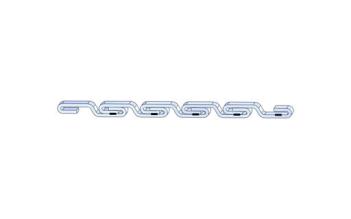

Unpacked Packed
25 - Heavy Weight
