1.375
0.7
7
0.8
7
1.5
0.5
6
0.7
6
0.9
6
1.3
7
2
0.7
8
1.0
8
1.1
8
1.7
9
2.0*
11
2.5
0.8
10
1.2
10
1.4
10
2.1
11
2.5*
13
3
1.0
11
1.4
12
1.6
12
2.5
13
2.9
14
0.7
14
3.5
1.1
13
1.6
14
1.9
14
2.8
15
3.4
16
0.8
16
4
1.2
14
1.8
16
2.2
16
3.2
17
3.8
18
0.9
18
4.5
1.4
17
2.0
17
2.4
17
3.6
19
4.3
20
1.0
20
5
1.5
18
2.2
19
2.7
19
4.0
21
4.7
22
1.1
22
6
1.8
21
2.7
23
3.2
23
4.7
25
5.6
26
1.3
26
7
3.1
27
3.7
27
5.5
29
6.5
30
1.5
30
8
3.5
30
4.2
30
6.2
33
7.4
34
1.8
34
9
3.9
34
4.7
34
7.0
37
8.3
38
2.0
38
10
4.4
38
5.2
38
7.7
41
9.2
42
2.2
42
11
5.7
42
8.5
45
10.1
46
2.4
46
12
6.2
45
9.3
49
11.0
50
2.6
50
13
6.7
49
10.0
53
11.9
54
2.8
54
14
7.2
53
10.8
56
12.8
57
3.0
57
15
7.7
56
11.5
60
13.7
61
3.2
61
16
8.2
60
12.3
64
14.6
65
3.4
64
INTERFLEX
(Standard Roughbore Interlocked
)
INTERFLEX
Part Numbers IN
Thickness Material
INTERFLEX
(Roughbore)

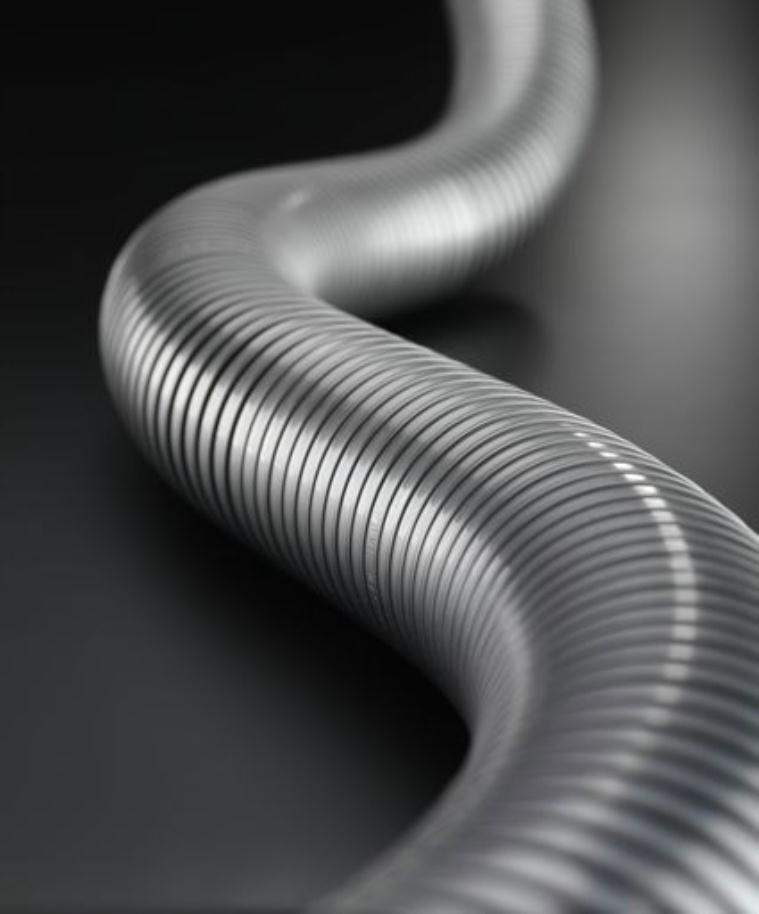

is a high-quality, general-purpose hose, constructed from a single strip of
metal that is profiled and locked onto itself. The interlocked, or overlapping, sections of strip are able to slide
back and forth, providing the ability to flex.
* 2 & 2.5 IN 30 available in Galvanized ONLY • Other diameters are available upon request. • For packed hose add 10% to both weight per foot and minimum
bend radius • Minimum bend radius is measured from the centerline of the hose.
INTERFLEX
(Roughbore)
Hose Specifications
Material Codes
AL - Aluminum
GS - Galvanized Steel
SS - T304 Stainless Steel
16 - T316 Stainless Steel
20 - T201 Stainless Steel
Thickness Codes
10 - Extra Light Weight
15 - Light Weight
18 - Medium Weight
20 - Medium Weight (AL only)
25 - Heavy Weight
30 - Extra Heavy Weight
Packing Options
Packing Type
Features
Maximum
Temperature
Low-Temp Elastomeric Max Press & Vacuum 200º F.
High-Temp Elastomeric Max Press & Vacuum 500º F.
Low-Temp Fiber
Economical
180º F.
High-Temp Fiber
Elevated Temperature 1000º F.
Metal
Extreme Temperature 800º - 1200º F.
3
INTERFLEX Features
• Balanced interlocked construction
• Durability
• Flexibility
• Service life
INTERFLEX Applications
• High-temperature ducting/hot air blower hose
• Engine exhaust
• Loading and unloading of trailers and rail cars
• Grain vacuum equipment
• Bulk transfer of abrasive materials
• Dust collection equipment
• Outer guard over other hoses to prevent damage, kinking,
or as protection from blow-out
• Internal liner in corrugated hose to improve flow velocity
and abrasion resistance
Packing

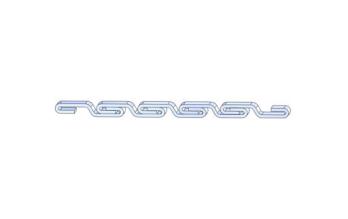

Unpacked
Example: IN10SS is made from T304 stainless steel strip
.010” thick.

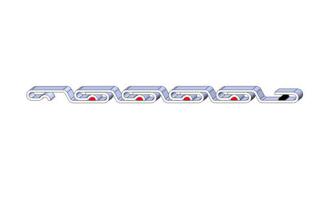

Packed
