Hydraflex

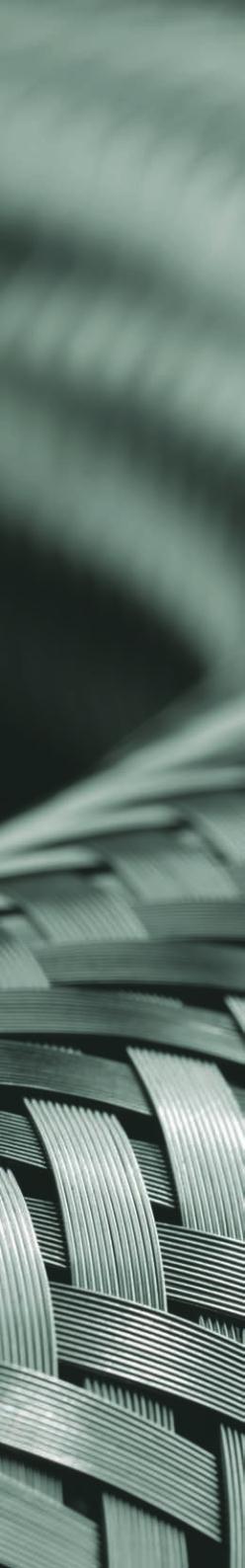

Hydraflex is Hose Master’s T316 double-walled, spirally-welded corrugated metal hose.
Specially designed to maintain extreme pressure and fexibility, Hydrafex is self-draining and
generates minimal in-line turbulence.
Explanation of Hydrafex Part Numbers
HF 34 _______
Braid Code
Example: HF3450 = T316 helical corrugated metal hose with a single T304 stainless steel braid
• The minimum bend radius is measured from the centerline of the hose
• The working pressure decreases with temperature - obtain derating factor on page 33 in Technical Information
• For rapid pressure fuctuations, consult factory
Braid Codes
50 - T304 Single Braid
55 - Double Braid
T316 Braid available upon request
Inside
Diameter
(in.)
Number of
Braids
(#)
Outside
Diameter
(in.)
Static
Minimum
Bend
Radius
(in.)
Dynamic
Minimum
Bend
Radius
(in.)
Maximum
Working
Pressure
(psi)
Burst
Pressure
(psi)
Weight
Per Foot
(lbs.)
1/4 1
2
0.52
0.62 1.1 5.0 4600
5800
18400
23200
0.21
0.32
5/16 1
2
0.62
0.74 1.2 5.1 4000
4800
16000
19200
0.29
0.45
3/8 1
2
0.70
0.82 1.4 5.5 3800
4000
15200
16000
0.36
0.57
1/2 1
2
0.82
0.94 1.6 5.7 2600
3700
10400
14800
0.43
0.69
5/8 1
2
0.97
1.09 2.2 6.1 2400
2700
9600
10800
0.51
0.82
3/4 1
2
1.19
1.31 2.8 6.5 2000
2200
8000
8800
0.64
1.03
1 1
2
1.39
1.51 3.5 7.9 1500
2000
6000
8000
0.78
1.25
1 1/4 1
2
1.75
1.87 4.1 9.4 1100
1600
4400
6400
1.15
1.70
1 1/2 1
2
2.07
2.19 5.1 12.2 1000
1500
4000
6000
1.45
2.16
18
