FIGURE 8000GR - WEIGHT
Valve Size
ANSI O.D.
Weight
Valve Only Valve with Gear Operator
In./DN(mm) In./mm Lbs./Kg. Lbs./Kg.
14 14 354 378
350 355.6 160.6 171.5
16 16 428 452
400 406.4 194.1 205.0
18 18 524 548
450 457.2 237.7 248.6
20 20 704 728
500 508.0 319.3 330.2
24 24 1,027 1,097
600 609.6 465.8 497.6

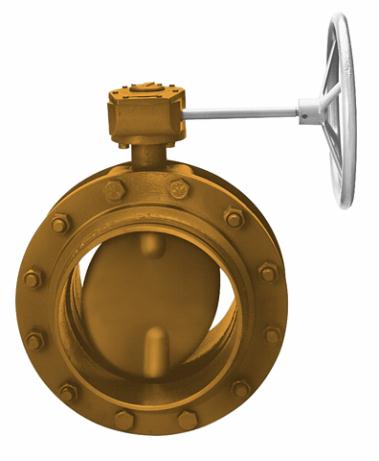

SERIES 8000GR
Butterfy Valve
For use in Grooved-End Piping Systems 14" to 24"
features
• Up to 200 psig (13.8 bar) WOG (non-shock)
• Outstanding fow characteristics
• Low torque operation
• Superior fow control
• Streamline profle disc
• Suitable for HVAC applications
• Vacuum service to 29.5” (750 mm) Hg
• End-of-line service capabilities
BUTTERFLY VALVE PERFORMANCE DATA
PRESSURE RATINGS:
150 PSIG (10.3 bar) WOG (non-shock)
200 PSIG (13.8 bar) WOG (non-shock)
Special order - available upon request.
29.5” (750 mm) Hg Vacuum Service
TEMPERATURE RATINGS:
Grade E (EPDM):
-40°F to 230°F (-40°C to 110°C) (Service Temperature Range)
Recommended for water service, dilute acids, alkaline, oil-free air
and many chemical services.
NOT FOR USE IN PETROLEUM SERVICES.
Grade T (Nitrile)
-20°F to 180°F (Service Temperature Range) (-29°C to 82°C)
Recommended for petroleum products, air with oil vapors, vegetable
oils and mineral oils.
NOT FOR USE IN HOT WATER SERVICES.
