For winged bayonet caps and hose barbs for dry booms.
• Diaphragm check valves set for 7 PSI
• EPDM Gaskets
• Nylon Construction
Elbow - Quick End x Hose Barb
Nozzle Bodies
Gasket YG00002020 included.
Winged Bayonet Caps
Y8231003
Y8231005
1/2” Barb
3/4” Barb
PART # DESCRIPTION
Elbow - Quick End x Hose Barb
Y8253048
Lechler® LU, ES, OC, ST, IDK/ Lurmark
flat fan tips/TeeJet® flat spray tips:
standard, XR, DG-8mm across the flats
Lechler® TR, ITR, POLY FT/
TK FloodJet®, FL FullJet®, TXA
ConeJet®, TG Fullcone®
Y8253050
PART # FITS TIPS:

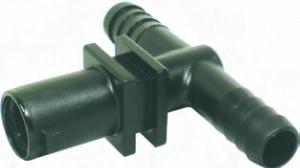

Tee - Quick End x Hose Barbs
Y8231009
Y8231011
1/2” Barb
3/4” Barb
PART # DESCRIPTION

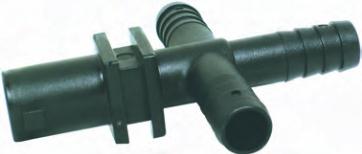

Cross - Quick End x Hose Barbs
Y8231015
Y8231017
1/2” Barb
3/4” Barb
PART # DESCRIPTION
Elbow - Quick End x Hose Barb w top diaphragm
Y8235021
Y8235023
1/2” Barb
3/4” Barb
PART # DESCRIPTION
Tee - Quick End x Hose Barbs w top diaphragm
Y8235027
Y8235029
1/2” Barb
3/4” Barb
PART # DESCRIPTION
Cross - Quick End x Hose Barbs w side diaphragm
Y8235015
Y8235017
1/2” Barb
3/4” Barb
PART # DESCRIPTION
Y8231009
Y8235021
Y8235015
Y8253048
Y8253050
Y8231015
Y8235027
®
