Hex Nut
Used to lock nozzle fitting on page 33 into Boom Clamp fittings.

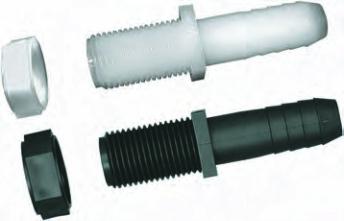

Straight Adapter
Thread 11/16” male UN x hose barb, nut included. Used on the
terminating ends of spray boom or a boom using a manifold.
Elbow
Thread 11/16” male UN x hose barb, nut included. Used on
the terminating ends of spray boom.

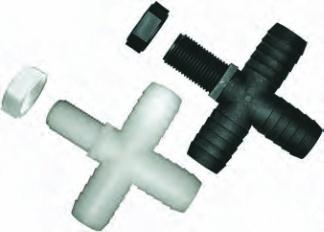

Cross
Thread 11/16” male UN x hose barb, nut included. Used in the
center of boom sections as a main feed line.
Tee
Thread 11/16” male UN x hose barb, nut included. Used between
the main feed lines and termination end of boom sections.
NTT 38 P
NTT 12 P
NTT 34 P
3/8”
1/2”
3/4”
NTT 38
NTT 12
NTT 34
T 38 C
T 12 C
T 34 C
T 38 C P
T 12 C P
T 34 C P
3/8”
1/2”
3/4”
NTL 38
NTL 12
NTL 34
NTL 38 P
NTL 12 P
NTL 34 P
3/8”
1/2”
3/4”
3838 D
3812 D
3834 D
3838 D P
3812 D P
3834 D P
3/8”
1/2”
3/4”
N1116
NYLON
PART # THREAD
POLYPROPYLENE
NYLON
PART # BARB SIZE
PART # BARB SIZE
PART # BARB SIZE
PART # BARB SIZE
POLYPROPYLENE
NYLON POLYPROPYLENE
NYLON POLYPROPYLENE
NYLON POLYPROPYLENE
N1116 P 11/16” Female UN
®
O
Z
Z
L
E
F
I
T
T
I
N
G
S
