19

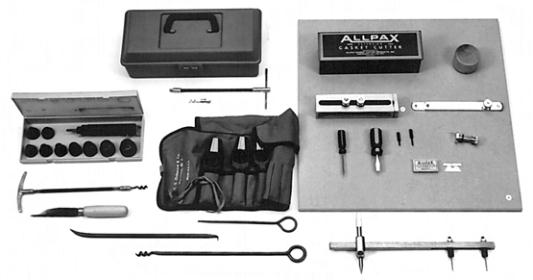

Packing and Gasket Tools

Osborne Flexible Packing Hook Set

Set includes packing hooks with a flexible strong shaft made with two spiral steel coils,

one inside the other, wound in opposite directions for those inaccessible areas.

Handle is solid zinc. Hook is tempered and permanently pointed. Boxed set

includes #1, #2, and #3 hooks (see dimensions in Style 14C1204 below).

Osborne Flexible Packing

Hooks (Individual)

Same as described above in Style 14C1203 except each size

sold individually. Size #4 sold individually only.

STYLE 14C1204

STYLE 14C1203

Osborne Rigid Double End Packing Tools

Double End Tools as described above in Style

14C906P.

STYLE 14CMT12

Osborne Rigid Packing Tool Set

Set includes rigid packing tools constructed of special tool steel and guaranteed

against breaking in service. Specifically designed for removing packing from stuffing

boxes. Oil finish. Set of six includes: 6", 10", 14", 18" packing screw; 8" packing hook;

and 12" double end.

STYLE 14C906P

Osborne Rigid Packing Screws

Packing screws as described above in Style

14C906P.

STYLE 14CMT10

Length

Part Number

6"

14CMT10-6

8"

14CMT10-8

10"

14CMT10-10

14"

14CMT10-14

18"

14CMT10-18

Length

Part Number

6"

14CMT12-6

8"

14CMT12-8

12"

14CMT12-12

Part

Overall Diameter Diameter Length

Number

Size Length of Shaft

of Spiral of Spiral

14C1204-1 #1

6 1/4"

3/16"

1/4"

3/4"

14C1204-2 #2

10 5/8"

1/4"

5/16"

1 1/8"

14C1204-3 #3

15"

3/8"

1 1/2"

14C1204-4 #4

18"

3/8"

1/2"

1 7/8"
