STYLE CG & CGI* TO ASME B16.20
TO SUIT ASME B16.5 FLANGES
In accordance with ASME B16.20, Inner Rings are mandatory for the following flange designations (see Toble 3).
Class 900 - NPS 24 to 48
Class 1500 - NPS 12 to NPS 24
Class 2500 - NPS 4 to NPS 12
ASME B16.20 does not include dimensions for NPS
1
/
4
, 3
1
/
2
or 4
1
/
2
, or Class 400 Flanges up to NPS 3 and Class 900 Flanges up to NPS 2
1
/
2
.
DIMENSIONS IN INCHES.

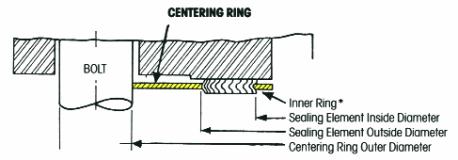

*For Style CGI - see Table 3 for Inner Ring dimensions
