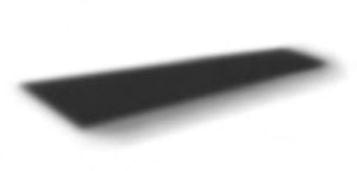

FLAT HEAD
For a very professional looking rectangular fender installation
try our flat head series! Held on the vessel, truck or dock in an
angle iron channel, no mounting holes are necessary.
Manufactured in black EPDM.
CODE NO. DURAMAX® BASE WIDTH BASE THICKNESS HEAD WIDTH HEIGHT BORE WT./FT. LENGTH
PART NO. (W) (BT) (HW) (H) (B) UP TO
DB-1006 802100601 6 1/2” 1 11/16” 7 3/8” 6” 1 3/4” 18.6 LBS. 20 FT.
DB-1009 802100901 9” 2 29/32” 9 7/16” 7 1/2” 3” 24 LBS. 20 FT.
