CODE NO.
DURAMAX
®
BASE WIDTH
HEIGHT
WALL THICKNESS
WT./FT.
LENGTH
PART NO.
(W)
(H)
(WT)
UP TO
DB-101
802010101
4 1/4”
3 7/8”
3/4”
4.6 LBS.
60 FT.
DB-115
802011501
4 1/2”
3 3/4”
3/4”
4.7 LBS.
60 FT.
DB-125
802012501
6 3/4”
6”
1 1/2”
13.6 LBS.
20 FT.
DB-150
802015001
9 1/2”
8”
1 1/2”
19.5 LBS.
20 FT.
100 SERIES
(CONTINUED)
H
W
WT
0
2
DEFLECTION
(inch)
REACTION FORCE
(k i ps )
4
6
25
50
75
0
2
DEFLECTION
(inch)
ENERGY ABSORPTION
(
ft - k i ps )
4
6
1
2
3
150
150
125
115
101
125
115
101
100
75
50
100
75 50

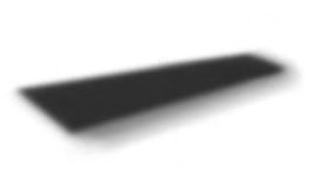

TAPERED D-SHAPE / D-BORE
Tapered D-shape offers a slightly different look than the
Key-bore cross sections. Also used in marine and industrial
applications. Offered in three EPDM colors:
black, non-marking grey and white.
Pictures here may not accurately depict the amount of taper found in this cross section.
Contact Duramax Marine
®
for drawing
.
