70
DPL410
877.963.4966 • www.dixonvalve.com
B

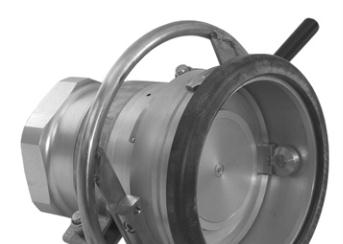

Dry
Disconnect
Coupler - Hose Unit
•
coupler has built-in swivel
•
stainless steel ball bearings
•
shaft journal in stainless steel embedded in PTFE (Teflon
®
)
to eliminate seizure
•
riveted piston pin to minimize the risk for failure under
extreme pressure conditions
•
the protective ring is a specially formulated, weather
resistant and electrically conductive rubber compound
Dust Plugs for Couplers
Size
Body Size
Polyeten PE-HD 300
Part #
Price/E
¾" and 1"
1½" and 2"
3"
3"
4"
6"
56 mm
70 mm
105 mm
119 mm
164 mm
238 mm
DDDP075
DDDP150
DDDP300105
DDDP300
DDDP400
DDDP600 *
$115.95
119.95
123.95
123.95
247.90
679.05
* 6" dust plug is aluminum
dry quick disconnect couplers x female NPT with Viton
®
seals
Female NPT Body Size
316 Stainless Steel
Anodized Aluminum
Brass / Gunmetal
Part #
Price/E
Part #
Price/E
Part #
Price/E
¾"
1"
1½"
2"
3"
3"
4"
6"
56 mm
56 mm
70 mm
70 mm
105 mm
119 mm
164 mm
238 mm
DDC075SS
DDC100SS
DDC150SS
DDC200SS
DDC300SS105
DDC300SS
DDC400SS
DDC600SS
$2350.65
2350.65
3957.70
3957.70
6100.45
6132.40
10661.75
27216.00
DDC075AL
DDC100AL
DDC150AL
DDC200AL
DDC300AL105
DDC300AL
DDC400AL
DDC600AL
$1227.30
1227.30
1655.05
1655.05
1838.95
1854.95
4049.65
18025.00
DDC075BR
DDC100BR
DDC150BR
DDC200BR
DDC300GM105
DDC300GM
DDC400GM
---
$1751.00
1751.00
2050.80
2050.80
2746.40
3074.20
5660.70
---
¾" and 1" design
1½" and 2" design
3" and 4" design
6" design
•
all wetted parts are stainless steel
•
stainless steel couplers: rollers are Hastelloy C276 on the
stainless steel shaft
•
aluminum and brass couplers: rollers are aluminum-bronze
on the stainless steel shaft
•
Composite (Polyeten PE-HD 300) plugs provide very good
protection against corrosion, and withstand hot and cold
environments.
