Dry Disconnect Couplings
When your product is:
• expensive
• expensive to clean up
• expensive to reprocess or dispose
• hazardous to workers or the environment
• prone to accidental spillage and product loss

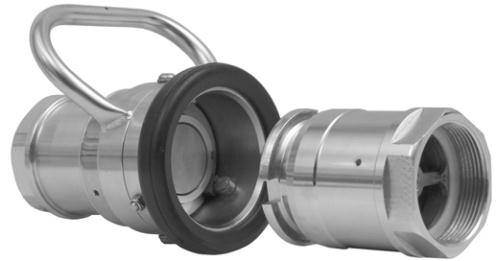

Dry disconnect couplings are designed for quick and spill free connection and disconnection of hoses and pipelines. They are
used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide
variety of common caustic and specialty acids.
• Easy to handle - push and turn - free flow, turn and pull -
closed
• Time saving - no need to drain hoses or pipe systems
• Economical - no loss or spillage of liquids at connection or
disconnection
• Safety - the valve cannot be opened until the unit is coupled
• Environment friendly - accidental spillage eliminated
• Safe and reliable - due to rugged construction
• Product life - uncomplicated design and high quality
materials ensures longer product life
• Selectivity - To avoid product contamination caused by
connecting a coupler to the wrong adapter, selective
versions of the adapters are available. Contact the factory
for further information.
• produced according to NATO standard STANAG 3756 and
ATOFINA SGM 2049.TUY.C.
• Working Pressure (at ambient temperature (70°F):
aluminum: 260 PSI
brass/ gunmetal: 360 PSI
stainless steel: 360 PSI
• Optional seals:
EPDM
NBR - nitrile
Kalrez®
Chemraz®
Perlast ®
• Seal kits are available
How it Works
Interchanges with Avery Hardoll and Todo-matic®
The principle of operation is identical for all sizes of couplings.

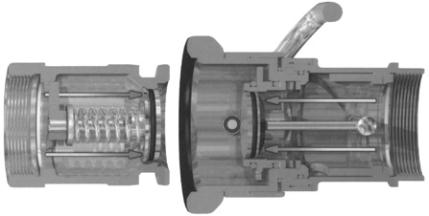

Closed:
• Turn and pull
it's released - no spillage

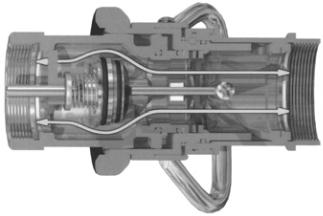

Open:
• Push and turn
it's coupled - full flow
