631 DPL410 877.963.4966 • www.dixonvalve.com
T
Sanitary Sizing Guide
• These actual size diagrams are provided to eliminate sizing errors when specifying sanitary fittings.
• The outside diameters are the same for ½" and ¾" (0.992 O.D.) and 1" and 1½" (1.984 O.D.).
• Sizes 2" and above have specific outside diameter dimensions.
• Diagrams are not available for 3" and above, a table is supplied for your convenience.
½" mini ¾" mini

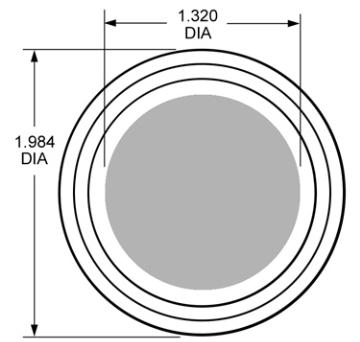

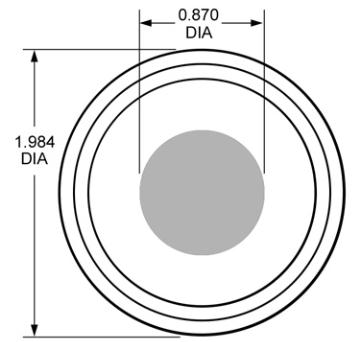

1" mini 1½" mini

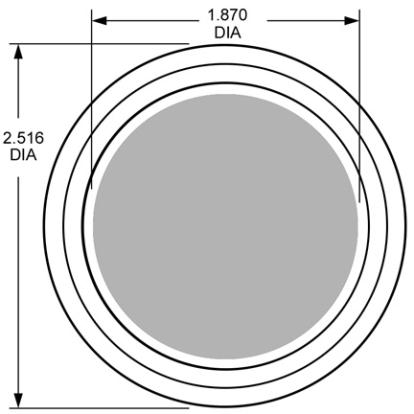

2" mini
Sanitary Size OD of clamp end ID of fitting Sanitary Size OD of clamp end ID of fitting
½"
¾"
1"
1½"
2"
2½"
0.992
0.992
1.984
1.984
2.516
3.047
0.370
0.620
0.870
1.320
1.870
2.370
3"
4"
6"
8"
10"
12"
3.579
4.682
6.562
8.602
10.570
12.570
2.870
3.834
5.782
7.760
9.782
11.760

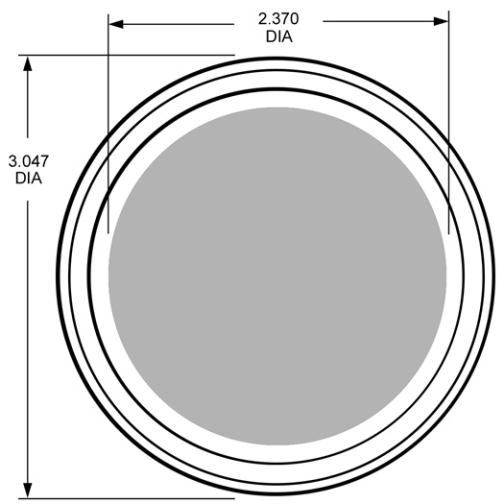

2½" mini
