561 DPL410 877.963.4966 • www.dixonvalve.com
T
T
11¾"
23¾"
Side Seal Drop Elbows
Side Seal Adapter
Description Aluminum
Part # Price/E

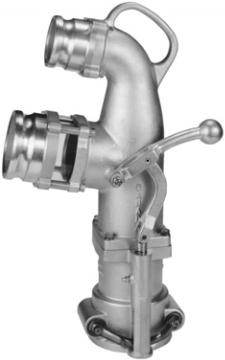

4" male inlet 6400 $1224.35
• for single point vapor recovery only
• 3" male vapor outlet (top)
• comes assembled with 4" male inlet
Note: Inlets made special for co-axials only.
• quality cast aluminum construction with solid bronze arms
• bolt-on inlets/outlets for easy, fast replacement
• acrylic sight glass with buna seals
Description Aluminum
Part # Price/E
4" male inlet 6000ASAL $744.80
• for use with special 4" side seal style fill collars only
• modular, easy to repair, bolt together aluminum construction
• comes with acrylic sight glass with buna seals (2), bronze
locking levers and buna main seal
• 4" male and lock ring installed
Description Aluminum
Part # Price/E
4" male inlet 6000-SSA $338.50
• allows conventional elbows to be used with special side seal
style fill collars
• bottom connects to side seal fill collar
• top section with standard 4" top seal collar profile to accept
clamping of standard 4" drop elbows
