DPL410
877.963.4966 • www.dixonvalve.com
P
Tank
Truck
•
for use in two point vapor recovery system
•
one-piece bronze locking arms housed in polymer bushings
•
advanced design side lever locking system
•
Viton
®
main seal with buna poppet seal and stainless steel
hardware
•
bolt on 3" male outlet included (can rotate for extended life)
•
lubrication fitting on locking stem
Note: See drop elbow below for single point vapor recovery
co-axial elbow 6400.
Description
Aluminum
Part #
Price/E
3" male inlet adapter with
no probe and poppet
3" male inlet adapter &
probe and poppet
VR6200NP
VR6200
$657.80
749.00

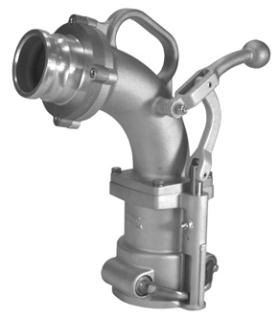

VR6200 Series Vapor Elbows
Bill Of Materials
Item
#
Description
Part #
Price/E Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
bottom body
top elbow body
bolt
lock washer
poppet bushing (VR6200)
poppet spring (VR6200)
stem pin
pivot stud
pivot bushing
pivot washer
pivot lock nut
Viton
®
poppet seal (VR6200)
poppet valve (VR6200)
poppet valve "stand off"
(VR6200)
outlet adapter bolt
outlet adapters & O-ring
outlet O-ring
lock washer
handle
handle pin
handle linkage
stem pin
body O-ring
stem spring
grease nipple
main seal gasket
left arm
stem
probe
small bushing
large bushing
right arm
---
---
use kit
6000EHK
use kit
6000EHK
VR6000-3
L1110-L2287
PIN5/16x11/4P
use kit
6200SHK
use kit
6200SHK
use kit
6200SHK
use kit
6200SHK
O-RING-AS-334
VR6000-4
VR6000-5
use kit
6000NPHK
VR6000-6
110319
use kit
6000NPHK
use kit
6200-15ASSM
PIN5/16x11/4P
use kit
6200-15ASSM
PIN5/16x11/4P
AS156
112012
NIPPLE/1
6000-9
VR6000-9
6200-7
VR6000-7
use kit
6200BK
use kit
6200BK
VR6000-8
---
---
---
---
$10.75
15.60
2.45
---
---
---
---
9.85
50.50
11.20
---
52.30
2.15
---
---
2.45
---
2.45
2.25
4.90
2.90
7.50
64.00
62.95
8.20
---
---
64.00
1
1
4
4
1
1
1
1
1
2
1
1
1
1
4
1
1
4
1
1
1
1
1
1
1
1
1
1
1
2
2
1
Repair Kits
Part #
Description
Includes Price/E
VR6230
6200BK
6000EHK
6200SHK
6000NPHK
6200-15ASSM
complete replacement
bottomunit
replacement small (2)&
large (2) bushingkit
replacement body lock
washersandbolts
replacement pivot stud,
bushing,washers& locknut
adapter kit bolts (4)& lock
washers
replacement handle, linkage
andpin
1,23,24,25,26,27,
28,29,30,31,32,33
31,32
4,5
9,10,11,12
16,19
20,21,22
$382.55
39.55
7.45
13.90
5.00
48.05
