Page 529 - DixonCatalog20092010

527

DPL410

877.963.4966 • www.dixonvalve.com

P

Size

Pipe OD

Working

Pressure

PSI

Coupling

Dimensions

Assembled

Dimensions

Max. Distance

Between

Pipe End

Weight

(lbs.)

Stainless Steel

actual

range

min to max

B C H DV KV

R

Part # Price/E

1½"

2"

2½"

3"

4"

5"

6"

1.90"

2.38"

2.88"

3.50"

4.50"

5.56"

6.63"

1.85" to 1.95"

2.32" to 2.42"

2.81" to 2.93"

3.44" to 3.56"

4.43" to 4.57"

5.51" to 5.62"

6.52" to 6.71"

232

3.0"

3.7"

4.2"

1.4"

2.0"

2.4"

.28

.36

.38

2.8"

3.2"

3.7"

4.4"

5.4"

6.4"

7.5"

3.3"

3.7"

4.6"

5.2"

6.2"

6.9"

8.1"

.20"

1.10

1.34

1.80

2.10

2.33

3.20

3.70

STR35001

STR35151

STR35201

STR35351

STR35651

STR35901

STR36051

$220.00

233.25

255.00

265.00

281.00

355.00

380.50

Not pull-out resistant.

Ensure that pipes are properly anchored and supported.

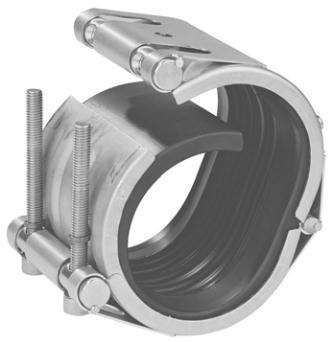

Straub Open-Flex 1L couplings are suitable for repairing or joining pipes where access to the pipe end is difficult or not possible.

This unique wrap-around design differs from similar type repair products because the installation or repair is permanent due to

the unique flexible lipseal gasket design. Open-Flex couplings will also act as an expansion joint.

Straub Open-Flex couplings

do require the pipes to be properly anchored and restrained as they are not pull-out resistant like the Straub Grip-L couplings.

Use Straub Open-Flex couplings to replace bolted sleeve type couplings (AWWA Std. C-219) or for permanent repairs or

installation.

Specifications:

•

casing: AISI 316Ti

•

screws: AISI 4135 steel

•

bolts: AISI 12L 14 Galvanized

•

EPDM sealing sleeve: temperature range

- 4°F

to

176°F

(-20°C to 80°C)

Approvals:

•

American Bureau of Shipping (ABS) up to 230 PSI

•

Underwriter's Laboratories (UL)

•

National Sanitation Foundation (NSF)

•

Joins like or dissimilar pipe materials: steel, galvanized,

painted, stainless steel, thin-wall stainless steel, PVC, copper

•

Requires no special tools or pipe-end preparation; only a

torque wrench is required for a secure and safe pipe

connection that seldom needs retightening.

•

highest quality 316 Ti stainless steel construction

•

accommodates up to 5° of pipe misalignment

•

vary gap between pipe ends

•

absorbs vibration, water hammer, and sound

•

acts an an expansion joint; will accept up to .25" of axial

movement

•

5 year limited warranty

•

reusable

•

conforms to ASTM 1476, Type 2, Class 3 specifications

Assembly tool available,

STR6648

,

$307.60
