O
Pipe &
Welding
Size
Pipe OD Working
Pressure
PSI
Torque
Rating
(ft. lbs.)
Coupling
Dimensions
Assembled
Dimensions
Max. Distance
Between
Pipe End
Stainless Steel
actual range
min to max B C DV KV R Part # Price/E
¾"
1"
1½"
2"
2½"
3"
4"
5"
6"
8"
1.05"
1.31"
1.90"
2.37"
2.87"
3.50"
4.50"
5.56"
6.63"
8.63"
0.85" to 1.25"
1.11" to 1.51"
1.70" to 2.10"
2.17" to 2.67"
2.67" to 3.17"
3.10" to 3.90"
4.10" to 4.90"
5.06" to 6.16"
5.93" to 7.23"
7.73" to 9.43"
670
550
440
320
450
320
232
232
232
232
5.5
5.5
11
11
15
15
18
30
30
45
1.8"
1.8"
2.4"
3.0"
3.7"
3.7"
3.7"
4.3"
4.3"
5.6"
0.7"
0.7"
1.0"
1.5"
1.6"
1.6"
1.6"
2.1"
2.1"
3.2"
1.7"
2"
2.6"
3.1"
3.8"
4.4"
5.4"
6.5"
7.6"
9.8"
2.8"
3"
3.9"
4.3"
5.3"
5.9"
6.6"
8.3"
9.1"
11.6"
0.2"
0.2"
0.2"
0.4"
0.4"
0.4"
0.4"
0.4"
0.4"
0.4"
STR20000
STR20100
STR20300
STR20450
STR20500
STR20650
STR20900
STR21150
STR21350
STR21400
$138.50
147.00
181.50
212.75
271.00
300.00
330.50
489.50
532.00
930.00
All Straub couplings require the correct use of a torque wrench for a safe and proper installation.
Straub couplings must be torqued to the specified value as printed on each individual coupling.
Failure to do so can result in serious injury or death.
Not for steam or refrigerant service.

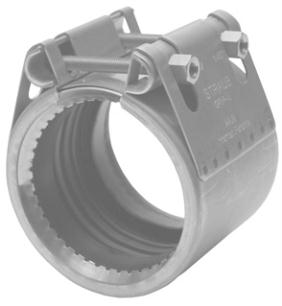

Straub Grip-L couplings are suitable particularly for pipes within the lower pressure range. Applications include, but are not
limited to: ship building, water and waste water treatment plants, and industrial process pipework.
Specifications:
• casing: AISI 316Ti
• screws: AISI 316 L
• bolts: AISI 316 Ti
• anchoring ring: AISI 301
• sealing sleeve: EPDM standard (NBR and Viton® A are
also available, contact the factory for additional information)
• EPDM sealing sleeve: temperature range - 4°F to 176°F
(-20°C to 80°C)
Approvals:
• American Bureau of Shipping (ABS) up to 230 PSI
• Underwriter's Laboratories (UL)
• National Sanitation Foundation (NSF)
• Joins like or dissimilar pipe materials: steel, galvanized,
painted, stainless steel, thin-wall stainless steel, PVC, copper
• Requires no special tools or pipe-end preparation; only a
torque wrench is required for a secure and safe pipe
connection that seldom needs retightening.
• highest quality 316 Ti stainless steel construction
• accommodates up to 5° of pipe misalignment
• vary gap between pipe ends
• absorbs vibration, water hammer, and sound
• special patented grip ring for superior holding power on
hard-surfaced pipes
• 5 year limited warranty
• reusable
• built to ASTM 1476, Type 2, Class 2 specifications
