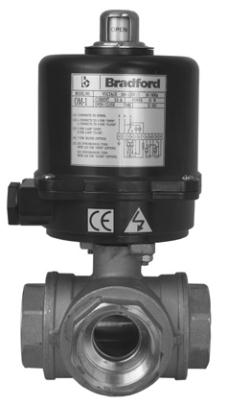

3-Way Brass Ball Valve
• pressure rating: 400 PSI WOG 100 PSI WSP
• maximum temperature: 344ºF
• blow-out proof stem
• chrome-plated brass ball
• PTFE seats with O-ring backing for low operating
torque
• PTFE seats and double O-ring stem packing
• 100% tested
• reduced port
• ISO 5211 mounting pad
Electric Actuator
• lightweight powder coated aluminum alloy housing
• NEMA 4/4X waterproof and dustproof
• H-insulation class
• manual over-ride standard: ½" - 1½"
• extended duty cycle induction motor
• high alloy steel gear train
• working temperature: -41°F to 140°F
• ISO 9001, CS, CE and CSA-C US Certified
• space heater is standard
• visual position indication
• RoHS compliant
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example: Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a
dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required.
Please consult the factory when dealing with these types of applications.
A wide variety of options are available: modulating, extra switches, transmitters, potentiometer, etc.
Contact the factory at 800.789.1718 or visit bradfordfittings.com for details.
¼" - 1½" 2" - 3"
Size A B C D Override Stainless Steel
Part #
110VAC
Voltage
-EA
24VDC
Voltage
-EG
12VDC
Voltage
-ET
220VAC
Voltage
-EK
24VAC
Voltage
-ES
1/4"
3/8"
1/2"
3/4"
1"
1¼"
1½"
2"
2½"
3"
8.76
8.76
8.76
8.85
9.19
9.41
9.90
10.89
11.34
11.34
6.06
6.06
6.06
6.06
6.06
6.06
6.06
4.25
4.25
4.25
2.64
2.64
2.87
3.19
3.74
4.39
4.86
5.73
6.93
7.08
1.32
1.32
1.44
1.60
1.87
2.20
2.43
2.87
3.47
3.54
standard
standard
standard
standard
standard
standard
standard
standard
standard
standard
BV3BV*R-0251
BV3BV*R-0381
BV3BV*R-0501
BV3BV*R-0751
BV3BV*R-1001
BV3BV*R-1251
BV3BV*R-1501
BV3BV*R-2001
BV3BV*R-2501
BV3BV*R-3001
$975.65
975.65
975.65
999.70
1066.00
1152.50
1381.00
2051.70
2850.00
2868.00
$975.65
975.65
975.65
999.70
1066.00
1152.50
1381.00
2051.70
2850.00
2868.00
$975.65
975.65
975.65
999.70
1066.00
1152.50
1381.00
2051.70
2850.00
2868.00
$975.65
975.65
975.65
999.70
1066.00
1152.50
1381.00
2051.70
2850.00
2868.00
$975.65
975.65
975.65
999.70
1066.00
1152.50
1381.00
2051.70
2850.00
2868.00
Refer to page 633 for alternate flow paths.
Default Flow Paths
position A
position D
T port
position A
position B
L port
Dimensions are approximate. Engineering dimensions are available upon request.
Specifications are subject to change without notice.
C D
ØB
A
D C
ØB
A
* T = t-port style
* L = l-port style
