Thermoplastic belt
27

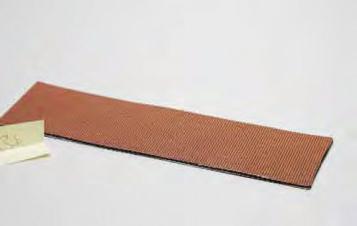

#118B
2 Ply 220 Tan Bare Back x Bare Back with Black Skim
Part Number: 20030515
Durable high strength two ply polyester belt with a low coeffcient of friction on both top
and bottom sides. Ideal for handling luggage, parcels, and boxed goods.
Temp. Range:
-25°F to 225°F.
Thickness:
5/32".
Weight:
.075 piw.
Min. Pulley Diameter:
8".
Recommended Fasteners:
#1 Hook, #125 Staple, #15 Alligator,
#R2 Rivet.
#250
2 Ply Green PVC Roughtop x Bare Back
Part Number: 24041070
This roughtop textured PVC belt has an abrasion resistant super-grip surface that enables
packages, boxes, cases, and other products to be conveyed on both inclines and declines.
Special low noise cover design allows the belt to run quieter on return idlers.
Temp. Range:
20°F to 180°F.
Thickness:
7/32".
Weight:
.077 piw.
Min. Pulley Diameter:
2-1/2".
Recommended Fasteners:
#25LP, 36LL, 62 Staple, Hot
vulcanized fnger splice, Cold bond bias step splice.

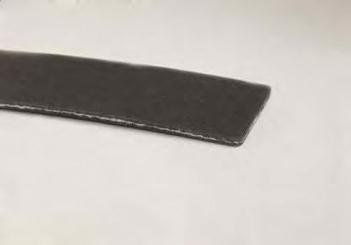

#66C
QB 150 Black FR F x F Non-woven
Part Number: 20038203
Excellent choice for package handling parcels and assembly lines. Needled polyester fabric
is quiet running, lightweight and fexible. Offers superior fexing carcass liner and fastener
retention.
Temp. Range:
20°F to 180°F.
Thickness:
1/8".
Weight:
.060 piw.
Min. Pulley Diameter:
2-1/2".
Recommended Fasteners:
#1 Clipper, #7 Alligator, #125
Staple.
Package Handl i ng / L i ght- duty / Thermoplast i c Belt
#249
2 Ply Green PU Matt Top x Bare Antistatic
Part Number: 24041051
A versatile and economical urethane covered belt. Excellent cut, gouge and oil resistant
characteristics. The belt is a great choice for metal parts, conveyors and general purpose
needs. Also has anti-static properties.
Temp. Range:
20°F to 180°F.
Thickness:
1/16".
Weight:
.025 piw.
Min. Pulley Diameter:
1/2".
Recommended Fasteners:
#25LP, Hot Vulcanized Finger
Splice; Cold Bond Bias Step Splice.
#223
2 Ply White Urethane x IMPG Bottom
Part Number: 24041040
High quality smooth, nonadhesive urethane top cover. Ideally suited for food conveying and
processing. Hard cover with good release characteristics for sticky material. Monoflament
polyester carcass that is excellent for fat slider bed and roller conveyors. FDA/USDA
approved.
Temp. Range:
20°F to 180°F.
Thickness:
1/16".
Weight:
.025 piw.
Min. Pulley Diameter:
1/2".
Working Tension:
46 lbs. piw.
Recommended Fasteners:
#2SP Hook, #00 Alligator, UCM36 SP.
