26

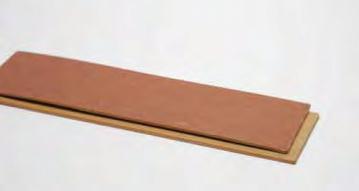

#111
5 Ply Brown Nitrile Friction Surface x Friction Surface
Part Number: 20032650
A tightly woven blend of cotton and polyester fabric. Often referred to as a “sheeting belt” for
a variety of light and medium weight conveying. Nitrile compounds make this construction
popular for oily conditions, particularly metal parts, and for carrying tapes for folding
machines. It is oil, grease, and chemical resistant.
Temp. Range:
0°F To 250°F.
Thickness:
7/64".
Weight:
.065 piw.
Min. Pulley Diameter:
1-1/2".
Recommended Fasteners:
#1SP Hook, #62 Staple,
#7 Alligator.
Package Handl i ng / L i ght- duty Belt
#203
7 Ply Brown Nitrile Friction Surface x Friction Surface
Part Number: 20032690
A tightly woven blend of cotton and polyester fabric. Often referred to as a “sheeting belt” for
a variety of light and medium weight conveying. Nitrile compounds make this construction
popular for oily conditions, particularly metal parts, and for carrying tapes for folding
machines. It is oil, grease, and chemical resistant.
Temp. Range:
0°F To 250°F.
Thickness:
5/32".
Weight:
.094 piw.
Min. Pulley Diameter:
3".
Recommended Fasteners:
#2 Hook, #20 Alligator.
#113
4 Ply Tan Slip Top x Friction Surface
Part Number: 20032500
This belt features a hard woven abrasion resistant bare nylon top ply which is virtually
frictionless. Ideal for stall operations or accumulating applications where the product must
stop while the belt continues to move. Automatic packaging machinery with gates and diverter
arms commonly use this specifcation.
Temp. Range:
-20°F to 250°F.
Thickness:
1/8".
Weight:
.070 piw.
Min. Pulley Diameter:
3".
Recommended Fasteners:
#1 Hook, #125 Staple, #7 Alligator.
#195
3 Ply PNT 150 Tan Nitrile Slip Top x Friction Surface
Part Number: 20032499
Oil resistant carcass features a hard woven abrasion resistant bare nylon top ply. Excellent
choice for stall and accumulating applications, where oil and grease are present.
Temp. Range:
0°F to 250°F.
Thickness:
1/8".
Weight:
.070 piw.
Min. Pulley Diameter:
3-1/2".
Recommended Fasteners:
#125 Staple, #7 Alligator.
#114
3 Ply Hot Stock and Water
Part Number: 20032550
Originally designed to convey uncured rubber in tire plants, it is often chosen to carry
packages. The bare top surface can function for “stall” operations like other slip top belts or
be run on the bottom for lowest possible friction for slider bed use.
Temp. Range:
-40°F to 250°F.
Thickness:
9/64".
Weight:
.072 piw.
Min. Pulley Diameter:
3-1/2".
Recommended Fasteners:
#1 Hook, #125 Staple,
#15 Alligator.
