SYSTEM AIDS & ACCESSORIES
BQ1020
Banjo Blocking-Off Tool
A professional tool for blocking-off
banjo fittings – Ideal for blocking
off brake hoses with banjo fittings
during maintenance & trouble
shooting. Copper Washer sealing
surfaces allows for sealing high
pressures – Easy to use & reliable -
Fits banjos holes 3/8" to 5/8".
Fitting Pressure Test Adapter
Ideal for pre-testing reworked fittings.
BQ18 Male Plug M10 x 1 5mm 10mm
BQ19 Male Plug 3/8" x 24NF 3/16" 10mm
BQ26 Male Plug 7/16" x 24NS 1/4" 11mm
BQ160 Female Plug 3/8" x 24NF 1/2" 15mm
BQ161 Female Plug 7/16" x 24NS 9/16" 15mm
BQ162 Female Plug 7/16" x 20NF 9/16" 15mm
BQ163 Female Plug 1/2" x 20NF 16mm 16mm
BQ164 Female Plug M10 x 1 13mm 15mm
BQ165 Female Plug M10 x 1.25 13mm 15mm
BQ166 Female Plug M12 x 1 16mm 16mm
BQ167 Female Plug M12 x 1.5 16mm 16mm
PART NO. DESCRIPTION THREAD A B
Fitting Plugs
The ideal fitting for blanking off high pressure fluid ports. Fitting design has a universal
seat so no sealing compounds necessary.
FEATURES:
• Zinc plated for corrosion resistance
• Imperial & Metric Threads
Assortment kit available.
To order see Part No. BQ7012.
BQ1022
0
10
20
30
40
50
60
70
80 90 80 70
60
50
40
30
20
10
0
BQ2033
BQ22B
BQ22A
Bench Mounted Angle Gauge
Part B – Banjo Holder

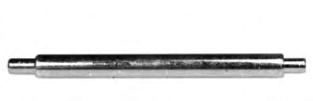

Part A – Banjo Bending Bar
Can be bench mounted – Ideal for
aligning tubes and fittings.

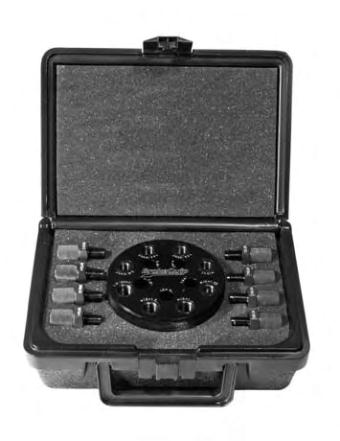

“The” Automotive Thread Gauge
Check Threads in an Instant...Accurately:
• Includes the 8 most popular sizes used on braking systems
• Includes both male & female size gauging
• Comes in sturdy black plastic case
• All threads are hardened for long life
• Male thread gauge is designed with a seat so you’re able to use it as a plug
IMPERIAL METRIC
3/8" x 24 NF M10 x 1
7/16" x 24 NS M10 x 1.25
7/16" x 20 NF M12 x 1
1/2" x 20 NF M12 x 1.5
Precision
Hardened
Threads
Male Size
Gauges
Female Size
Gauges
Instantly identifies at least 95% of brake plumbing threads.
BQ2100
