MISCELLANEOUS HOSE FITTINGS
Copyright © 2002-2007
4
BrakeQuip
A = Asian EU = European US = United States UNI = Universal V = Various
HF04
7/16"NS Double
1/4"
80mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel
HF06
7/16"NS Double
1/4"
61mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel 90°
HF07
7/16"NS Double
1/4"
76mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel 45°
HF08
M10 x 1
DIN
3/16"
70mm EU
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel
HF15
7/16"NS Double
1/4"
52mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel
HF16
3/8"NF Double
3/16"
57mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel
HF16B
3/8"NF Double
3/16"
49mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel - Brass
HF17
3/8"NF Double
3/16"
49mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel 90°
HF18
1/2"NF Double
5/16"
72mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel
HF28
1/2"NF Double
5/16"
60mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel
HF29
1/2"NF Double
5/16"
62mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel 90°
HF33
3/8"NF Double
3/16"
65mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel 45°
HF34
M10 x 1 Double
3/16"
71mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel
HF39
7/16"NS Double
1/4"
54mm V
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel
HF52
M10 x 1
DIN
3/16"
57mm US
THREAD FLARE TUBE SIZE
OAL
FITS
Swivel

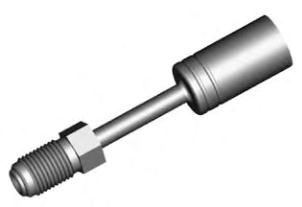

MALE SWIVEL
