34
BrakeQuip
IMPERIAL MALE FITTINGS
A = Asian EU = European US = United States UNI = Universal V = Various
HFIM24
1/2NF
12mm 16mm 44mm US
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM25
3/8NF
12mm 16mm 78mm US
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM26
7/16NS
13.5mm 16mm 78mm US
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM27
7/16NF
13mm 16mm 63mm US
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM02
3/8NF
24mm 16mm 52mm V
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM05
3/8NF-1/2NF 26.5mm 16mm 55mm EU
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM06
7/16NF
28.5mm 17mm 56mm V
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM07
1/2NF
32mm 19mm 60mm V
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM12
3/8NF
24mm 16mm 75mm EU
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM17
3/8NF
12mm 16mm 49mm US
THREAD THREAD LENGTH HEX
OAL
FITS
HFIM22
7/16NF
13mm 16mm 51mm US
THREAD THREAD LENGTH HEX
OAL
FITS
STANDARD MOUNT

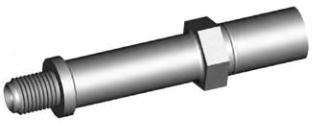

BULKHEAD MOUNT
CLIP MOUNT
