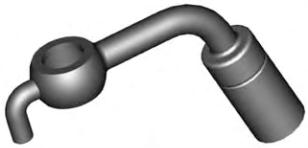

BANJO FITTINGS
A = Asian EU = European US = United States UNI = Universal V = Various
HFB348
10mm 15mm 18mm 30°
50mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB349
10mm 15mm 18mm 30°
50mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB353
10mm 8mm 18mm 75°
60mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB354
10mm 8mm 18mm 75°
60mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB357
10mm 8mm 18mm 40°
60mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB358
10mm 8mm 17mm 75°
45mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
Right
Right
Left
Right
Left
HFB359
10mm 8mm 17mm 75°
45mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
Right
HFB360
10mm 8mm 18mm 55°
65mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
Right
HFB340
10mm 10mm 18mm 45°
100mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB341
10mm 10mm 18mm 75°
55mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB342
10mm 8mm 17mm 15°
60mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
Right
HFB343
10mm 8mm 17mm 15°
60mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
HFB345
10mm 10mm 18mm 50°
45mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
HFB346
10mm 10mm 18mm 50°
45mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
Right
HFB356
10mm 8mm 18mm 40°
60mm A
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
Copyright © 2002-2007
11
BrakeQuip
ROUND STYLE - BENT
