Page 7 - Angus

Hi-Combat II

™

Fire Hose for aggressive interior combat operations

• Friction loss at 200 gpm is over 15% less than regular 1-3/4"

hose.

• Kink Resistance exceeds that of conventional jacketed hose.

• Drag Coefficiency is the lowest of any fire hose we have

tested making it easier to pull during attack operations.

• Abrasion resistant outer jacket is designed and

manufactured to withstand a minimum of 2000 cycles on the

U.L. abrasion test and 12,000 cycles on the F.M abrasion

test programs.

• Anti-burst Technology ensures it will not burst

catastrophically even with a 1/2" diameter hole through both

the jacket and liner.

• Hi-Combat can withstand a surface temperature of 1000°F

for a minimum of 45 seconds, at a static pressure of 100 psi.

• Cold Resistant to at least -36°F.

• Chemical Resistant liner protects from exposure to water

and contamination by most chemical substances,

hydrocarbons, oils and grease.

• Available as 1-3/4" line and 2-1/2" big flow line, ideal for

master stream operations and high rise fire fighting.

Hi-Combat IIR

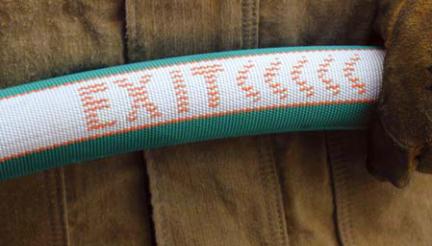

Hi-Combat IIR was designed to address situations where interior

attack hose is used as a lifeline. With reflective material woven

into the hose, fire fighters and civilians can follow the reflective

"Exit Arrows" incorporated into the hose to safety.

Angus Hi-Combat II

Pressure

Weight* Coil Diameter

Size

Service

Proof

Burst

Bowl Size 50' (15m)

50' (15m)

inch mm

psi

kPa psi

kPa

inch mm lbs. kg inch mm

1-3/4 45

500 3500 1000 7000 1500 10500 2-1/8 54 18 8.1 16-1/2 419

2-1/2 65

400 2800 800 5600 1200 8400 2-1/8 73 27 12.3 18-1/2 470

Angus Hi-Combat IIR
